General Information

Important Safety Notes:

• Check the inside of the larger pieces in your box for other materials packed inside.
• Use an area approximately 5’ × 8’ for unobstructed assembling.
• You should not need to use excessive force when assembling components.
• For quickest assistance, have product number EC18039 and your box available.

Returns:
If you wish to return your product, please contact us first — we can often help resolve the issue right away.
If a return is still necessary, it must be initiated with the retailer where the product was purchased.

Need Help or Replacement Parts?

Although great care has been taken to ensure proper packaging and handling of this product, occasional issues can occur.

If you need replacement parts, assembly assistance, or have questions about the product, our customer service team is happy to help.

• Website: https://parts.nychbrands.com
• Email: support@encloscreens.com
• Phone: 704-892-5222 or 877-234-6196

Customer service agents are available 9am–5pm EST, Monday–Friday.

For Quick Assistance:

• Have reference item number EC18039
• Provide the specific part name
• Include the batch lot number

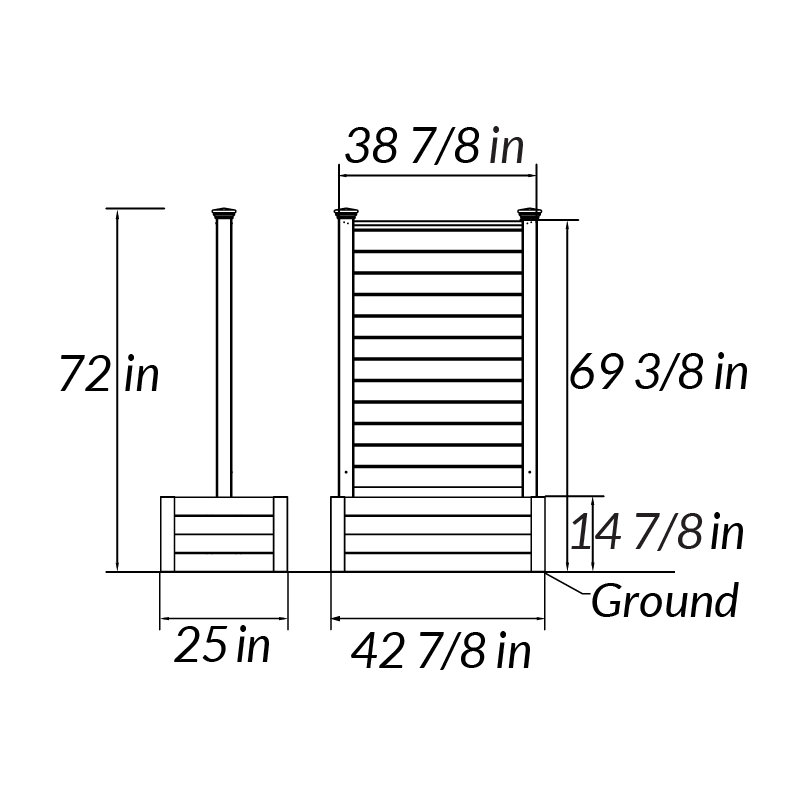

Detailed Dimensions & Specifications

Product Specifications:

• Screen Height: 72"
• Screen Width: 43"
• Planter Box Width: 38 7/8"
• Planter Box Height: 14 7/8"

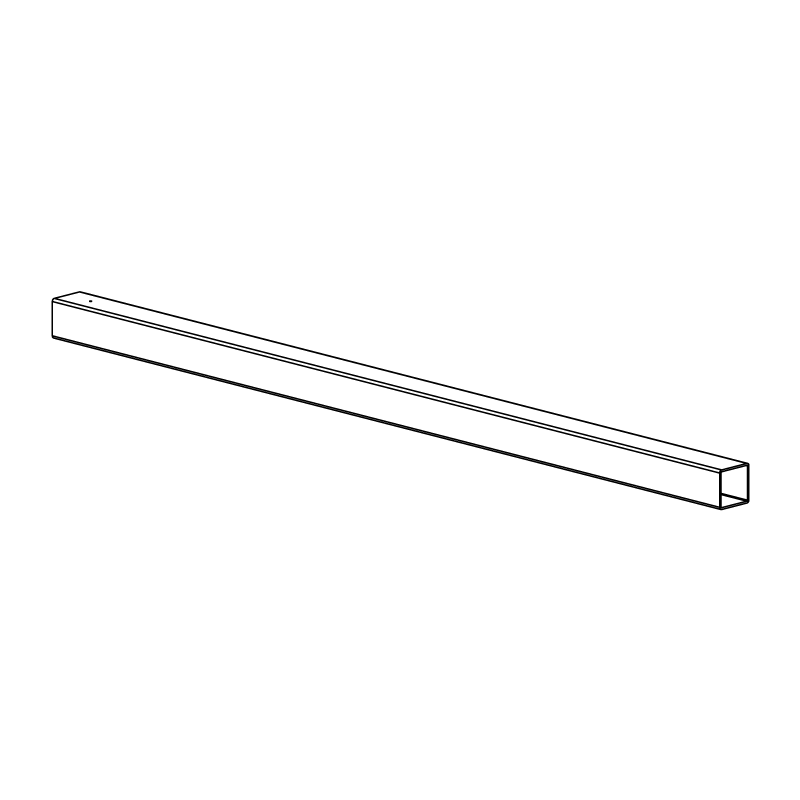

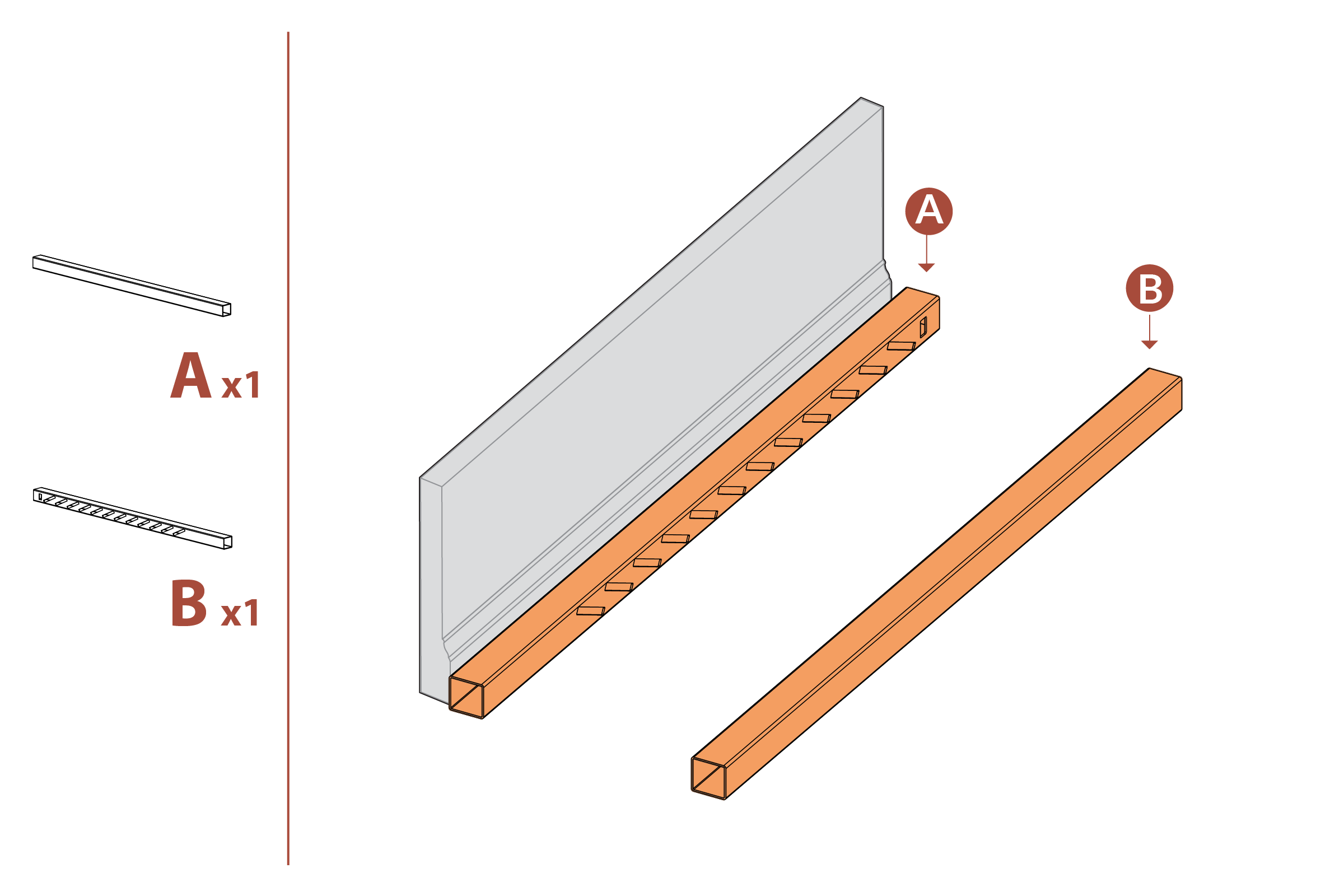

A. Left Post (1)

3" × 3" × 68 5/8"

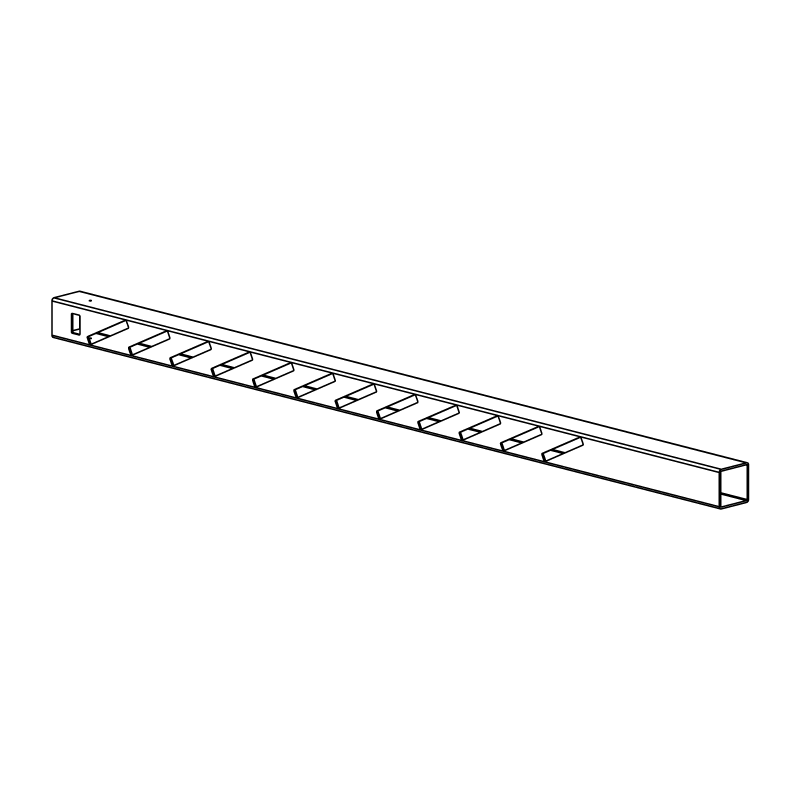

B. Right Post (1)

3" × 3" × 68 5/8"

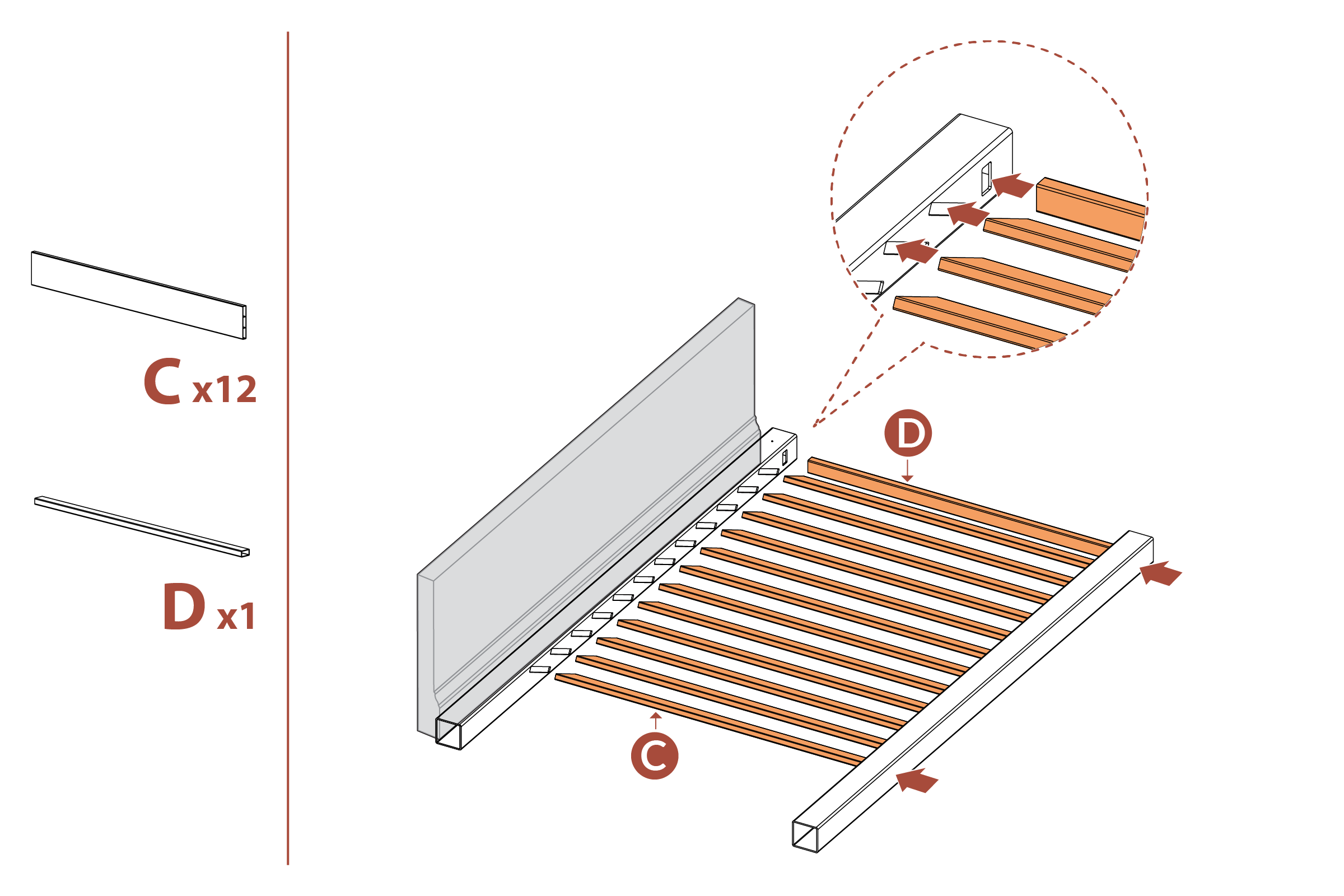

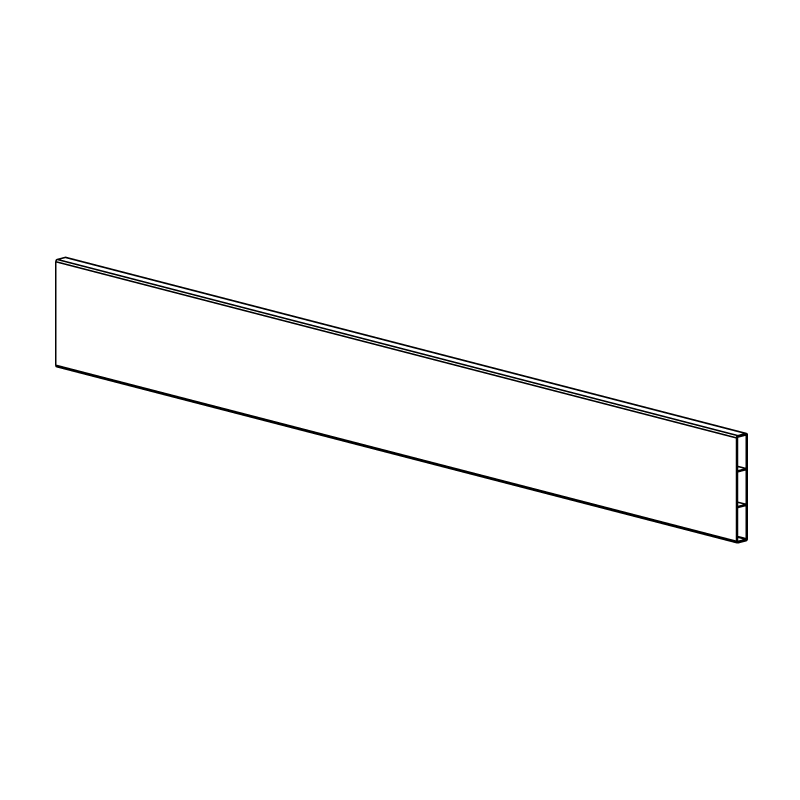

C. Slats (12)

5/8" × 4 1/2" × 39"

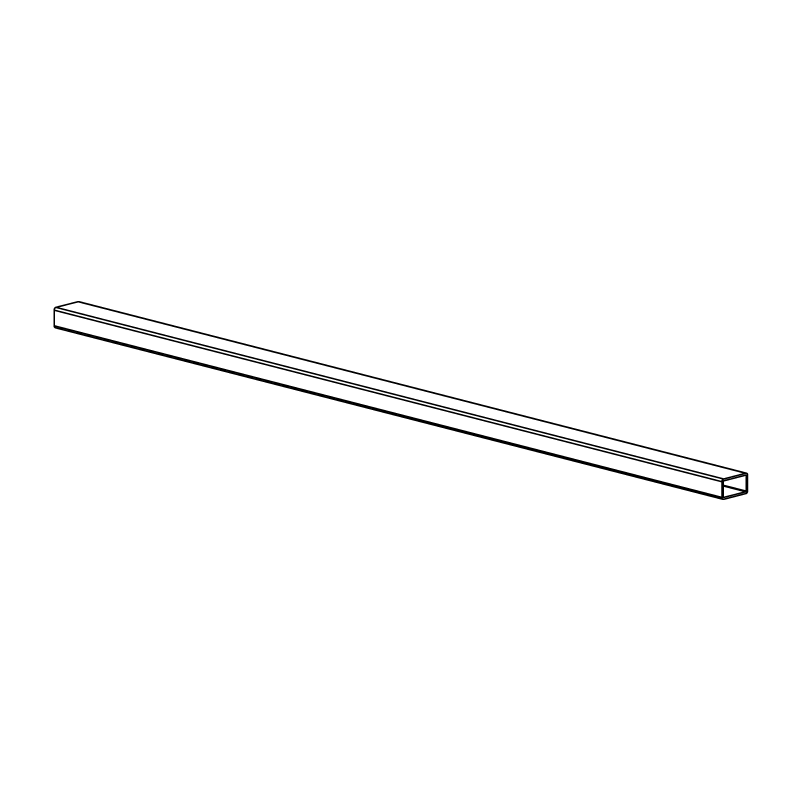

D. Top Rail (1)

7/8" × 1 1/2" × 39"

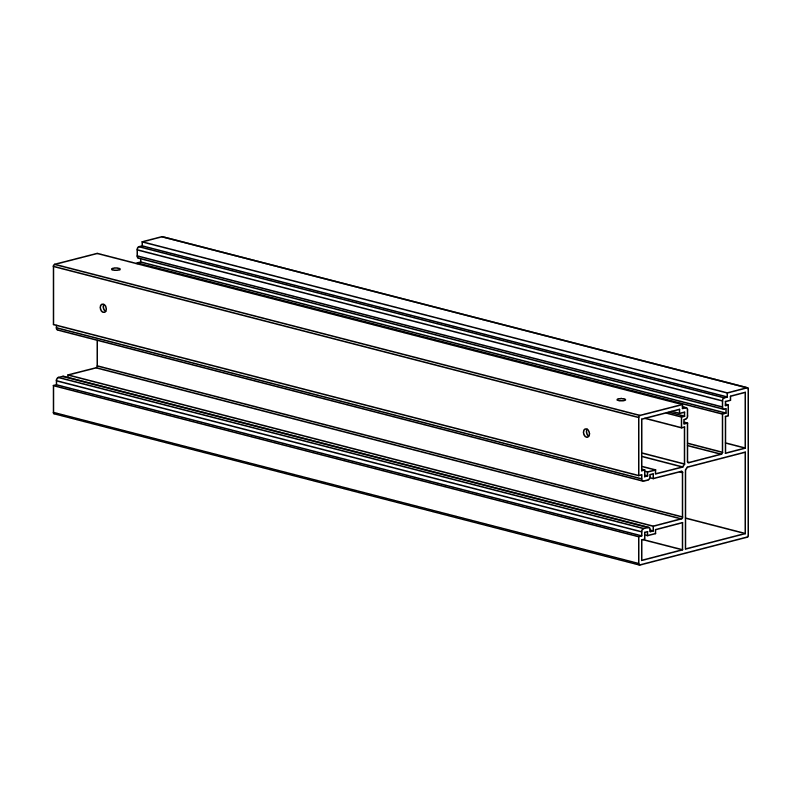

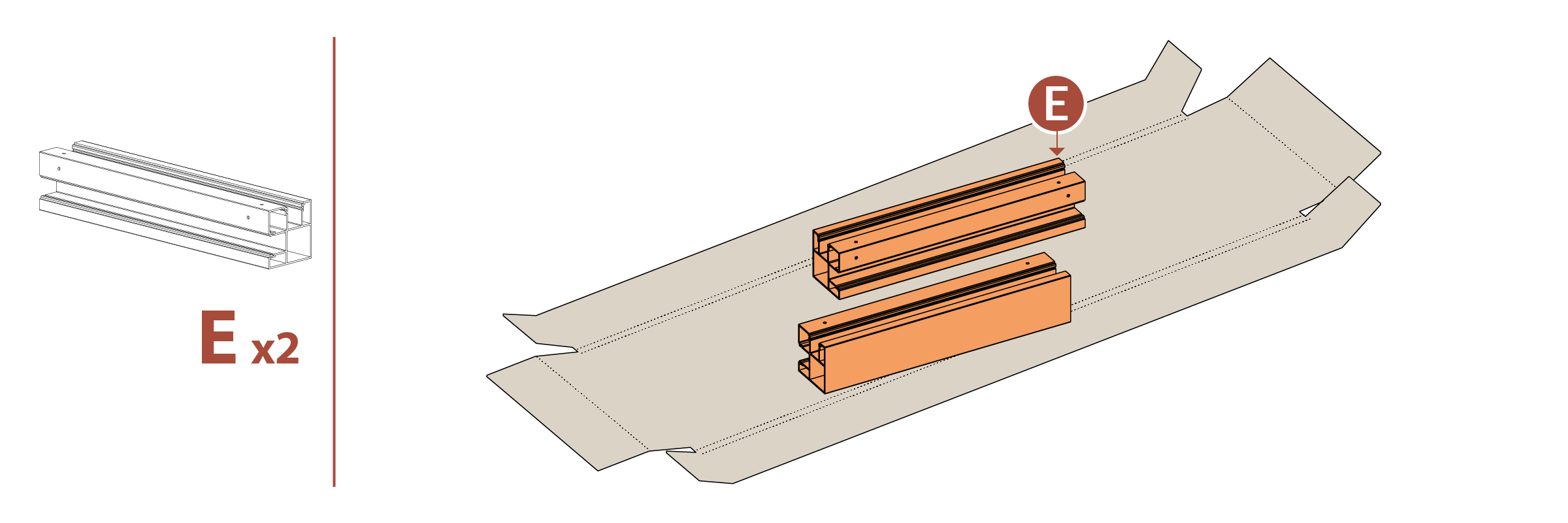

E. Planter Box Posts (4)

2 3/4" × 2 3/4" × 15"

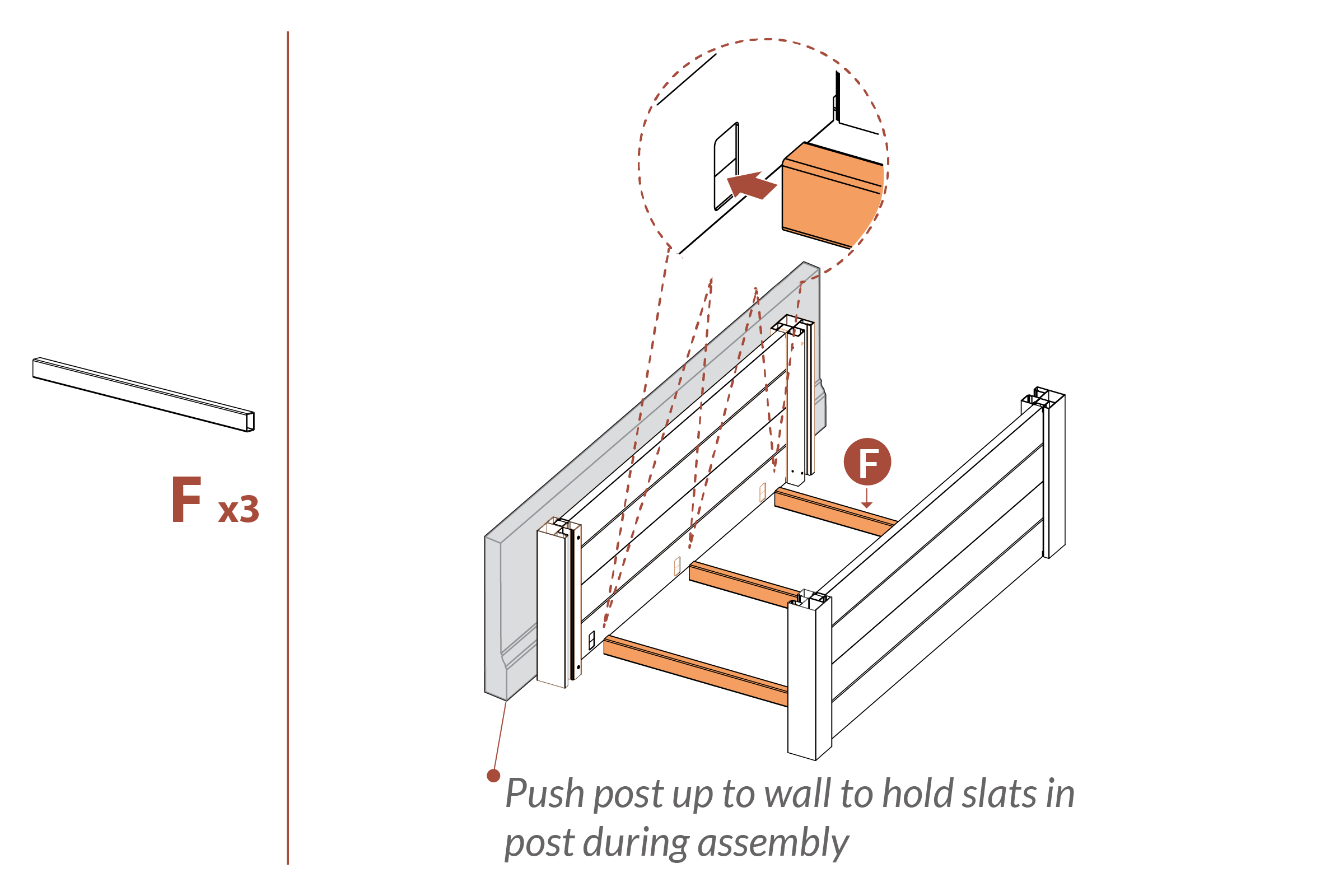

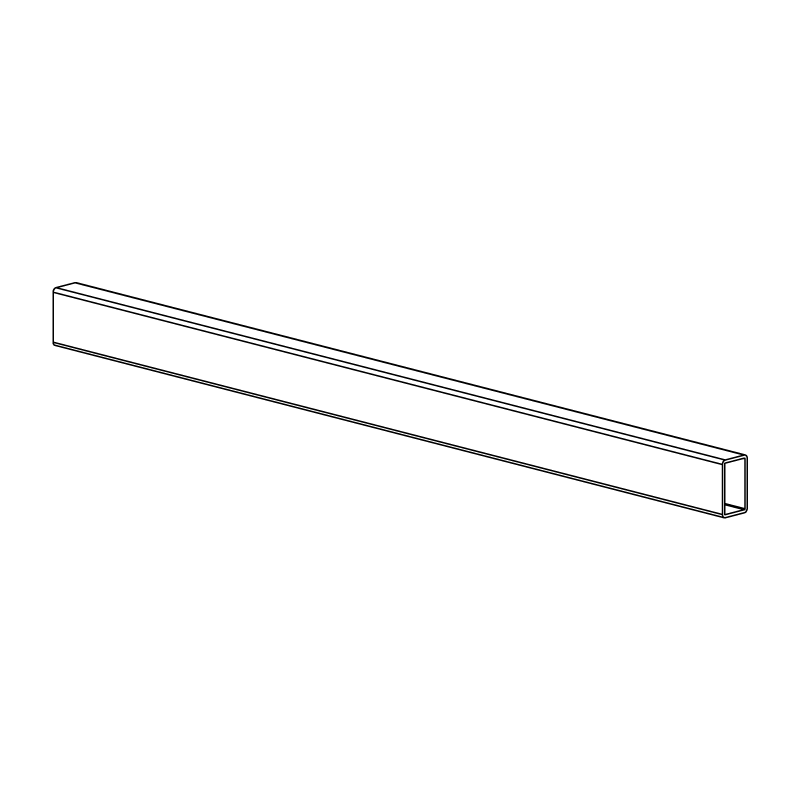

F. Floor Supports (3)

1 1/2" × 7/8" × 23 5/8"

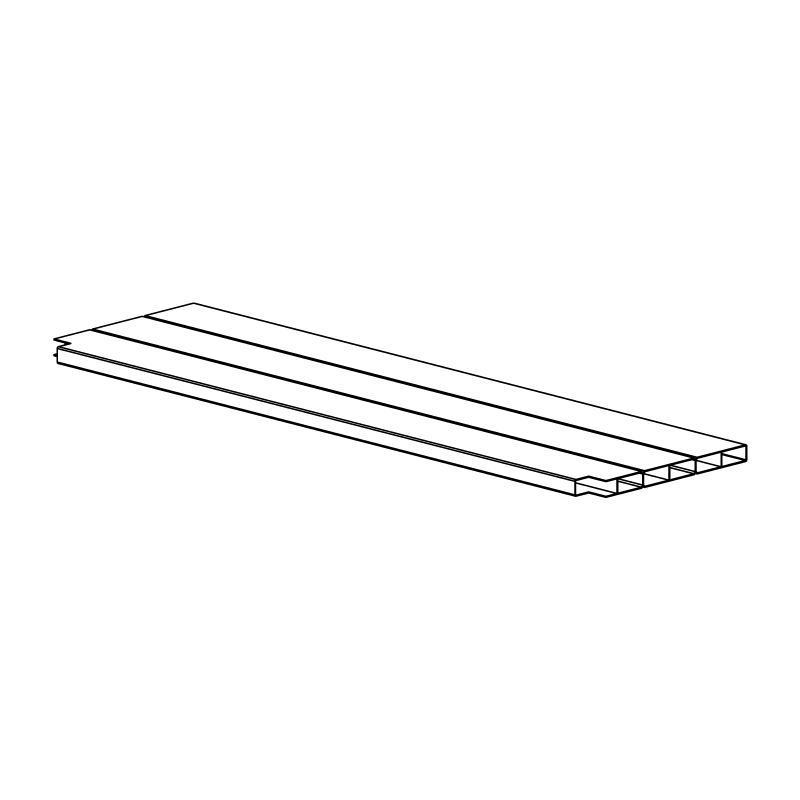

G. Floor Boards (2)

7/8" × 11" × 39 1/4"

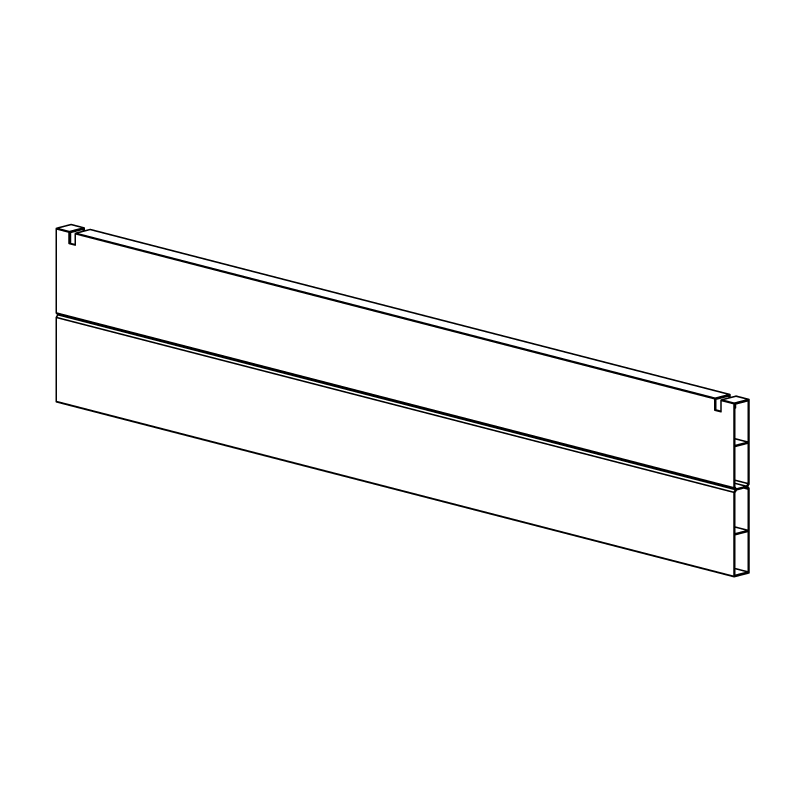

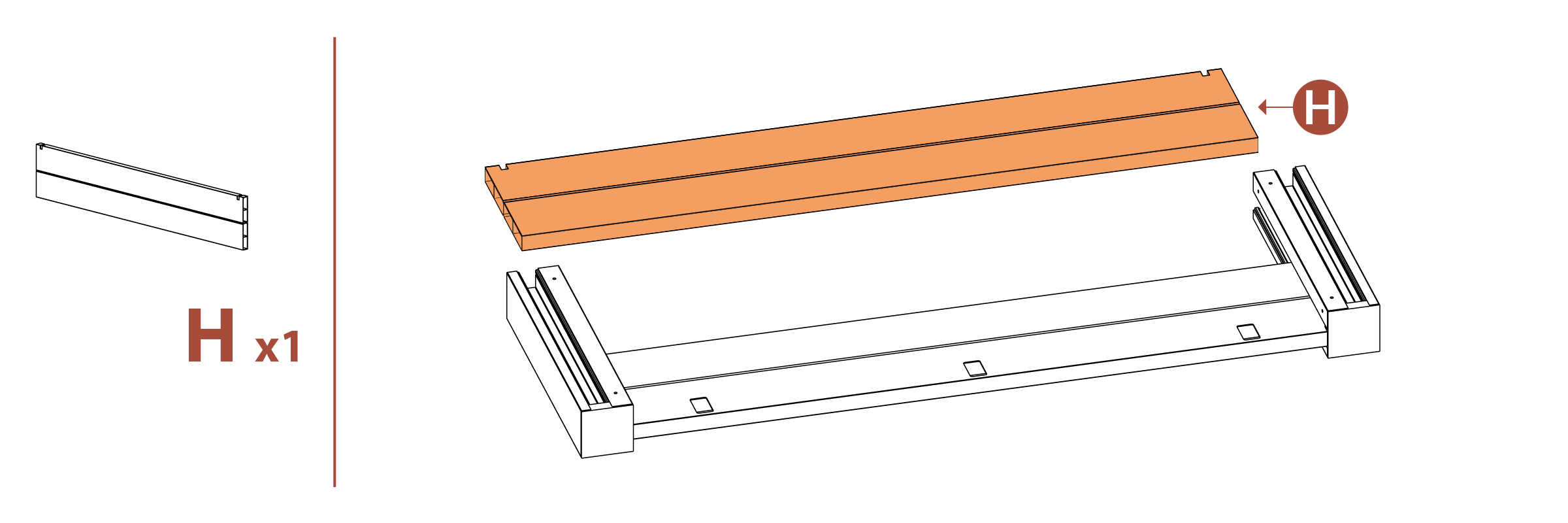

H. Long Planter Boards — Tops (2)

7 3/8" × 7/8" × 39"

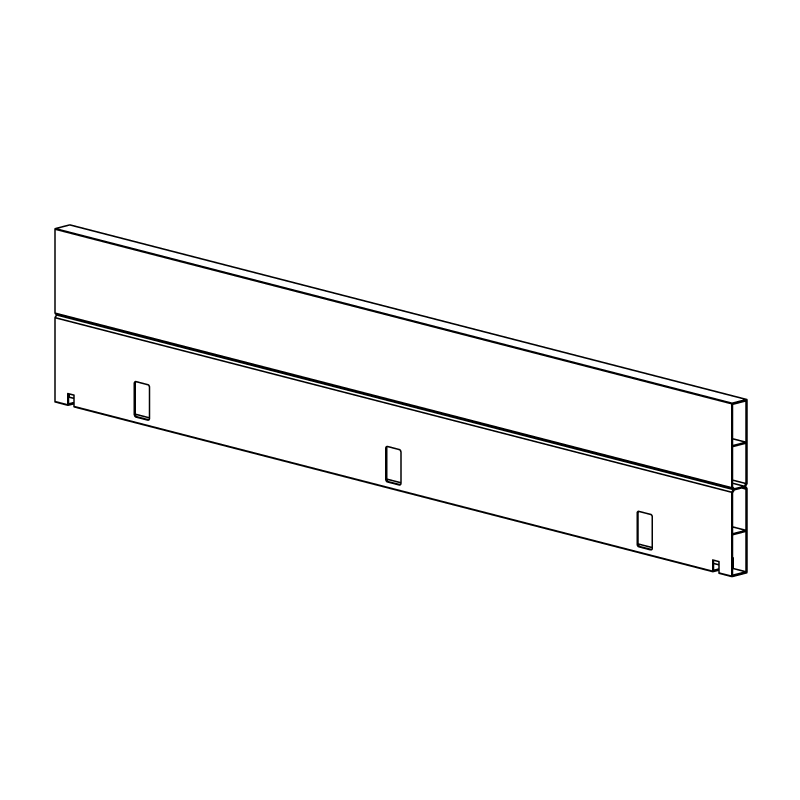

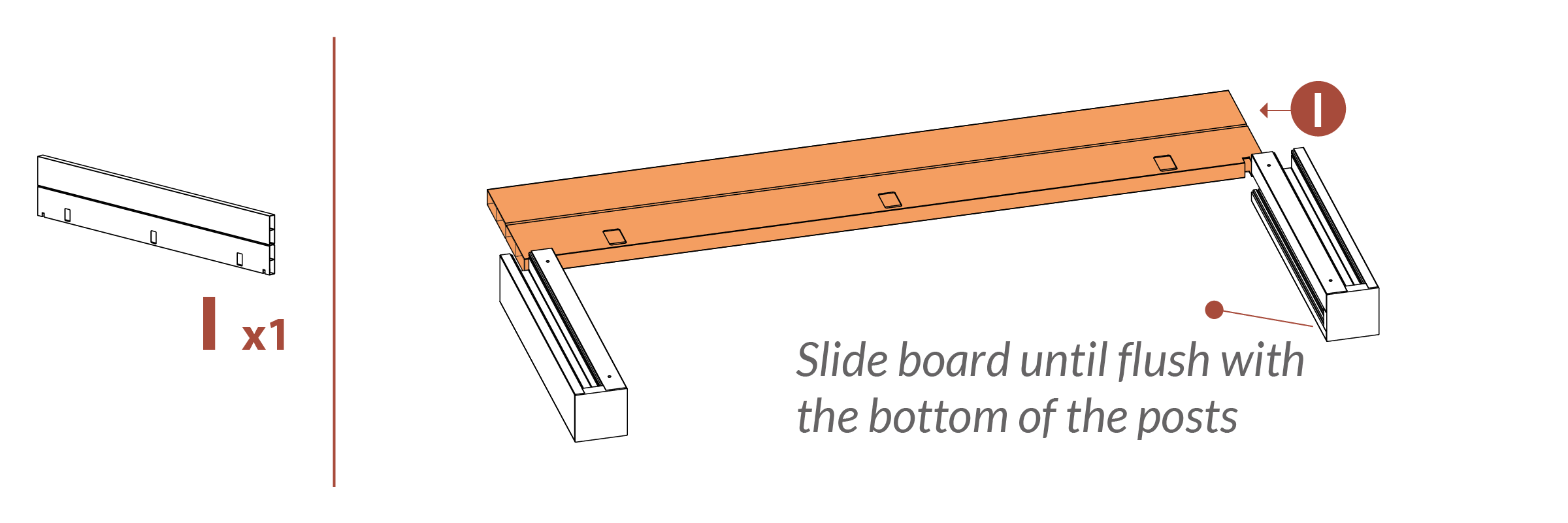

I. Long Planter Boards — Bottom (2)

7 3/8" × 7/8" × 39"

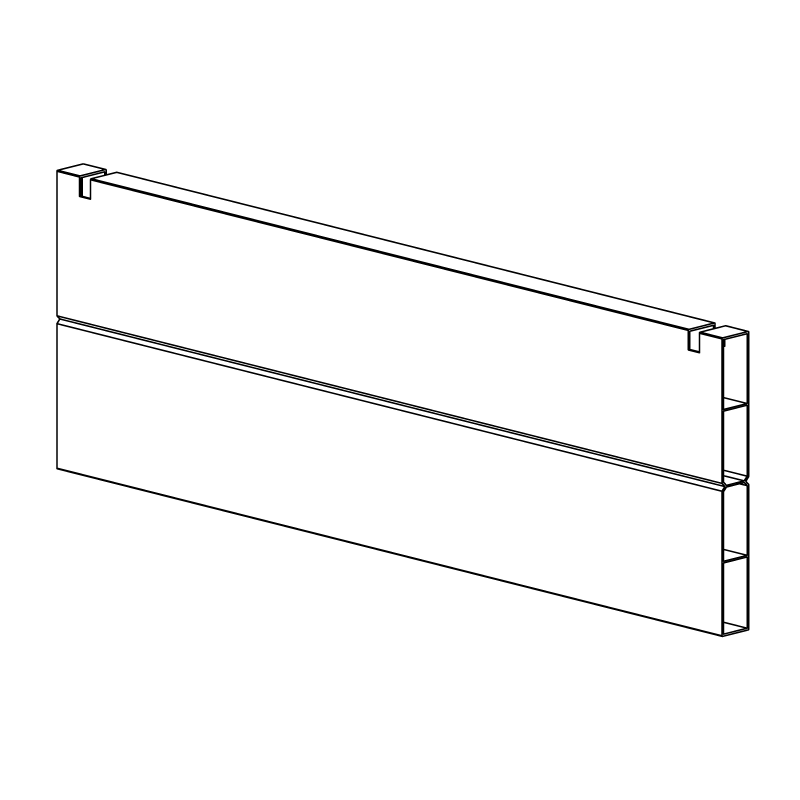

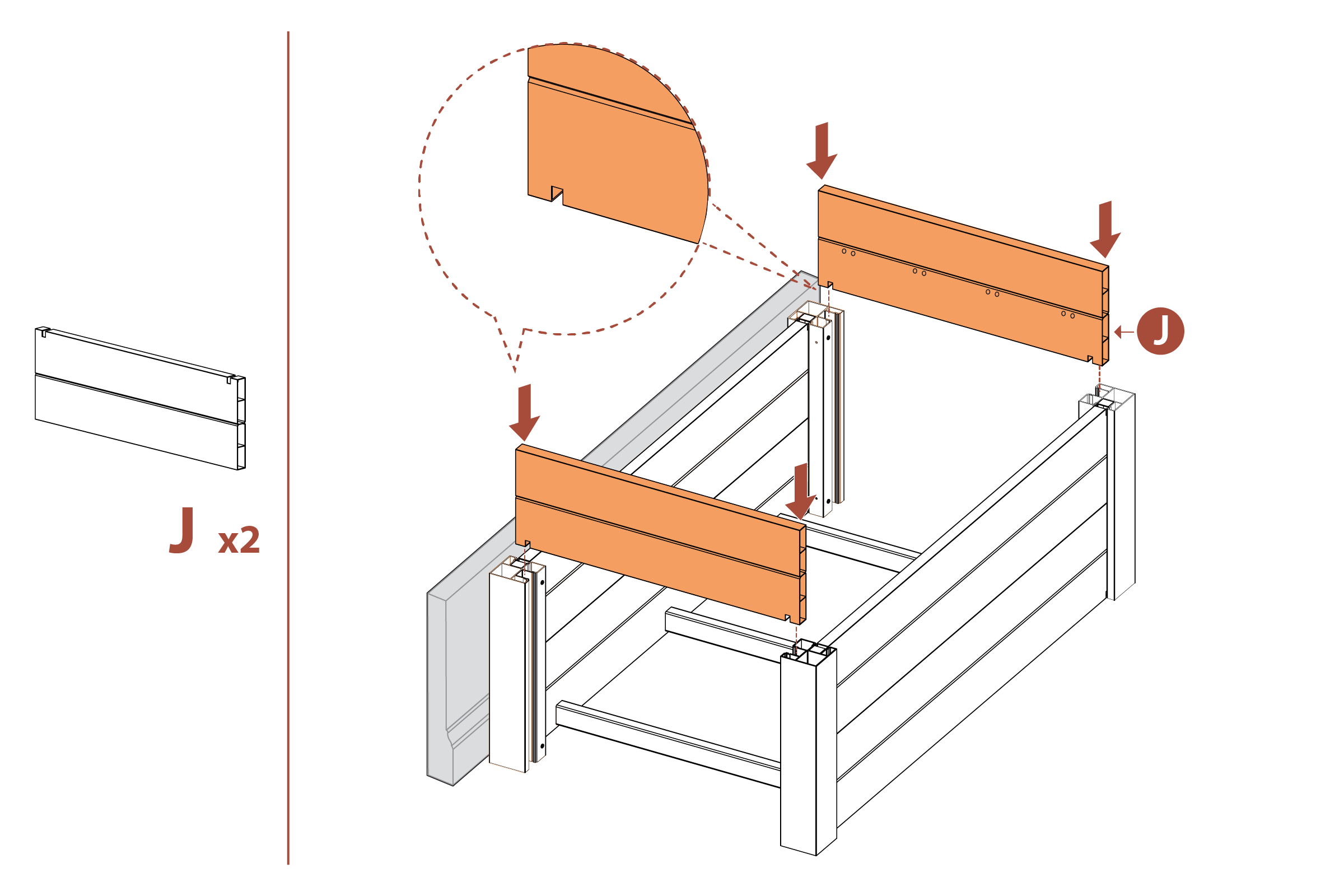

J. Short Planter Boards (4)

7 3/8" × 7/8" × 21 3/4"

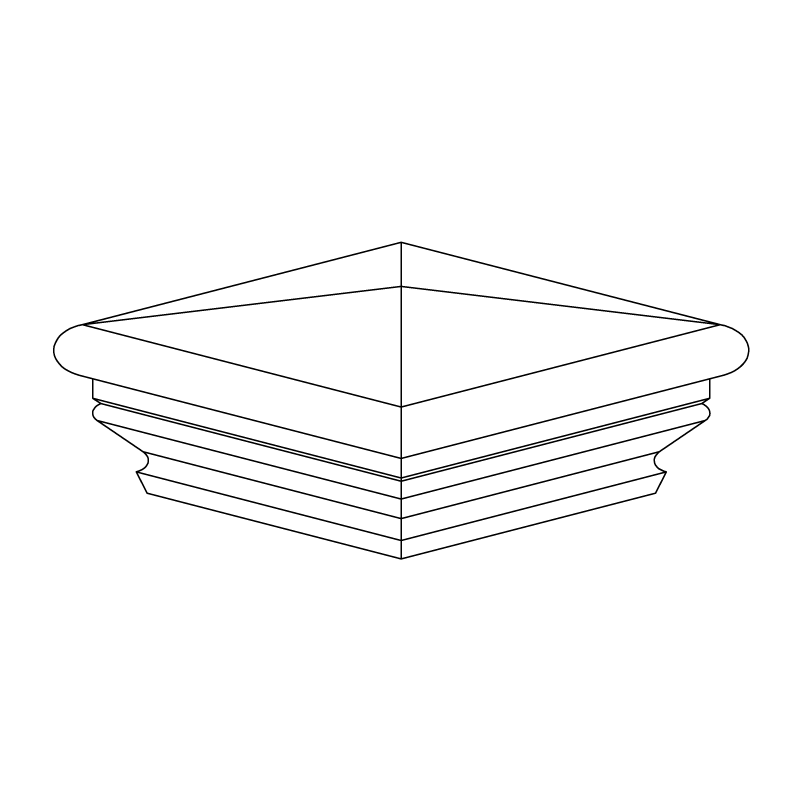

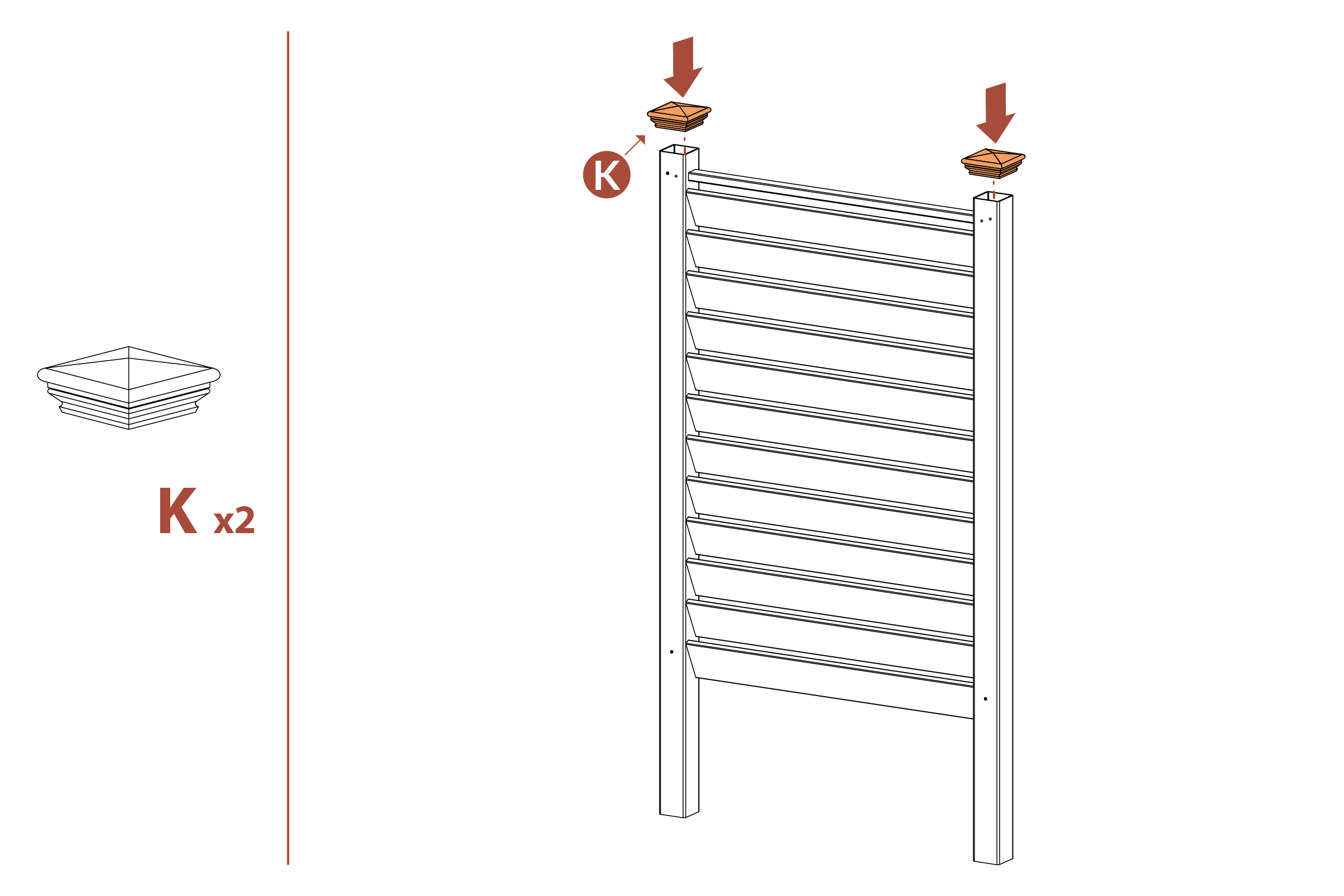

K. Screen Post Caps (2)

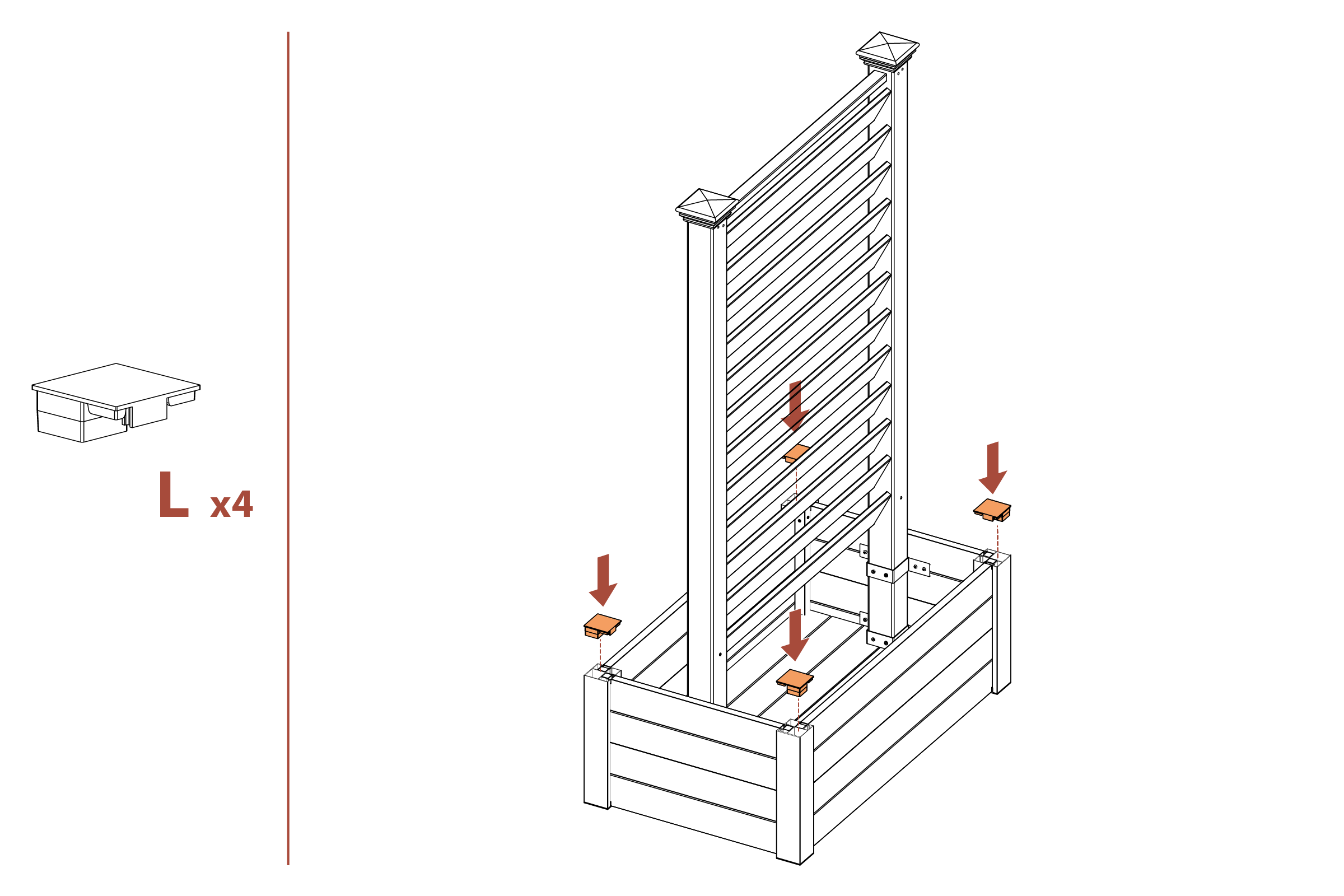

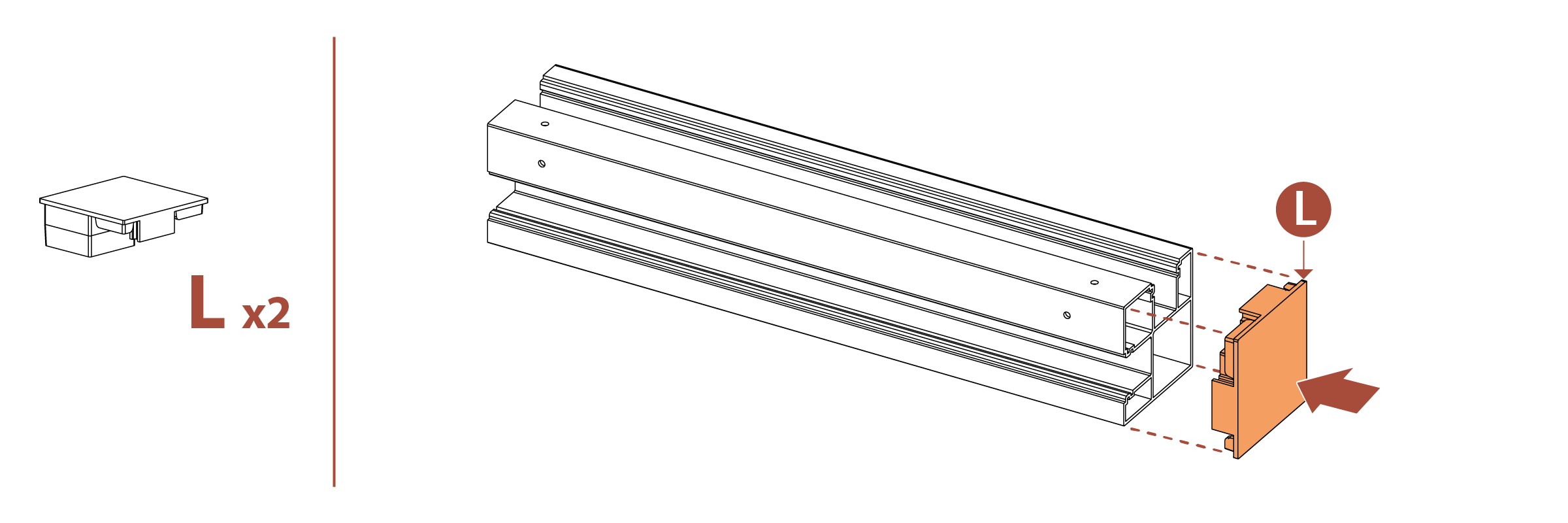

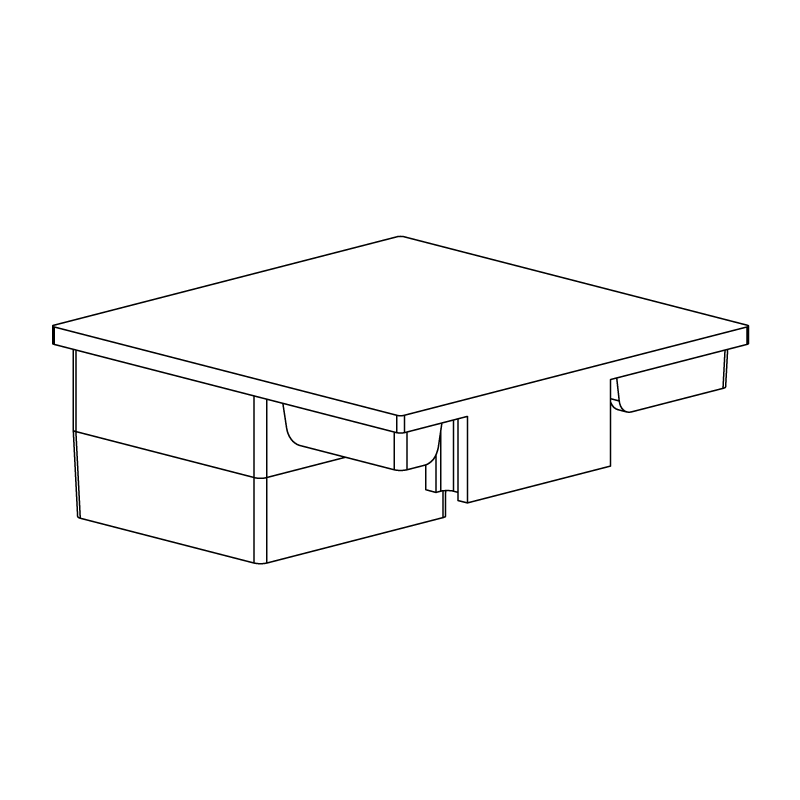

L. Planter Post Caps (8)

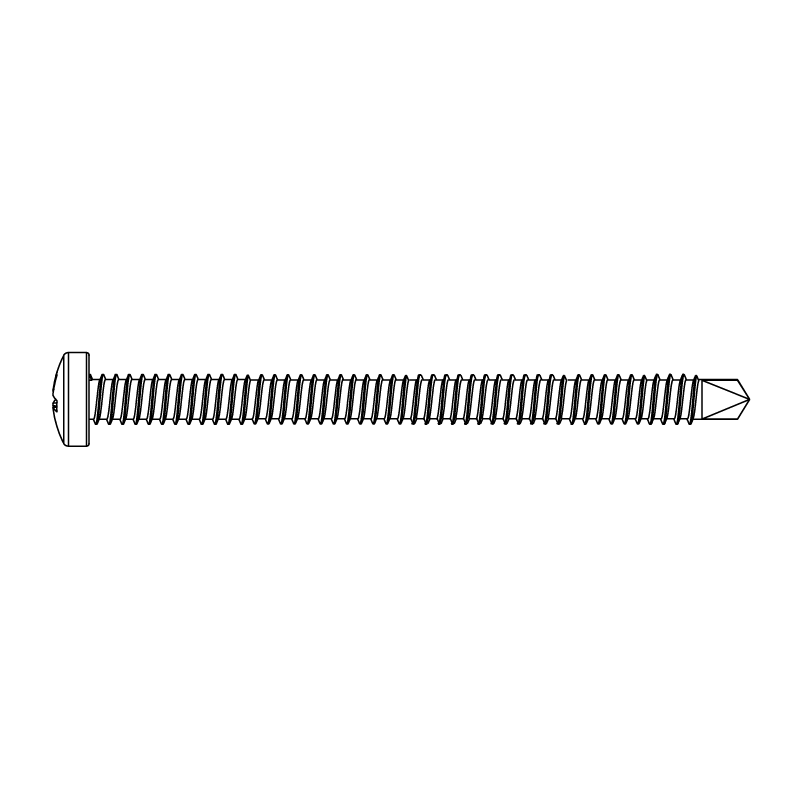

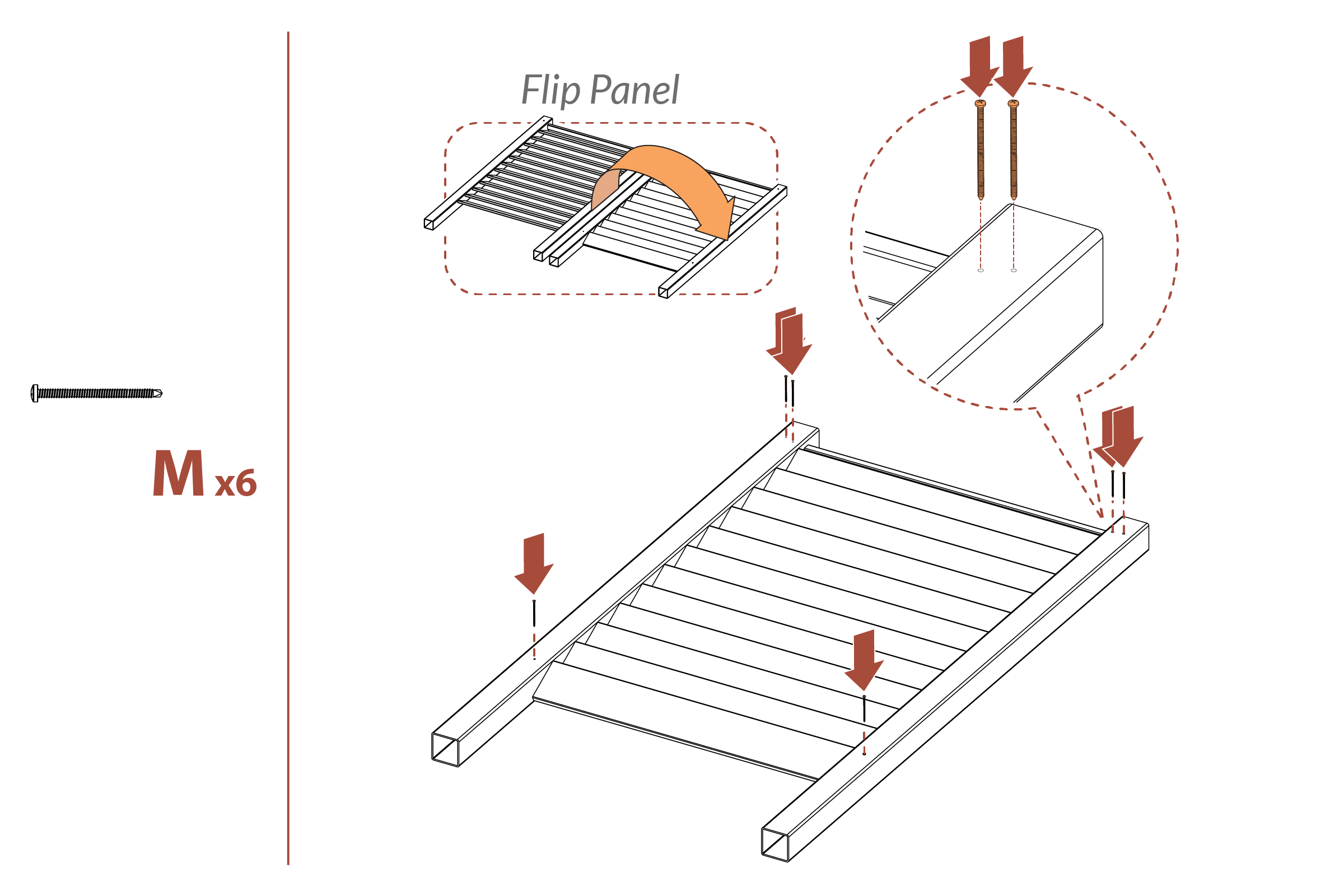

M. 2" Screw (22)

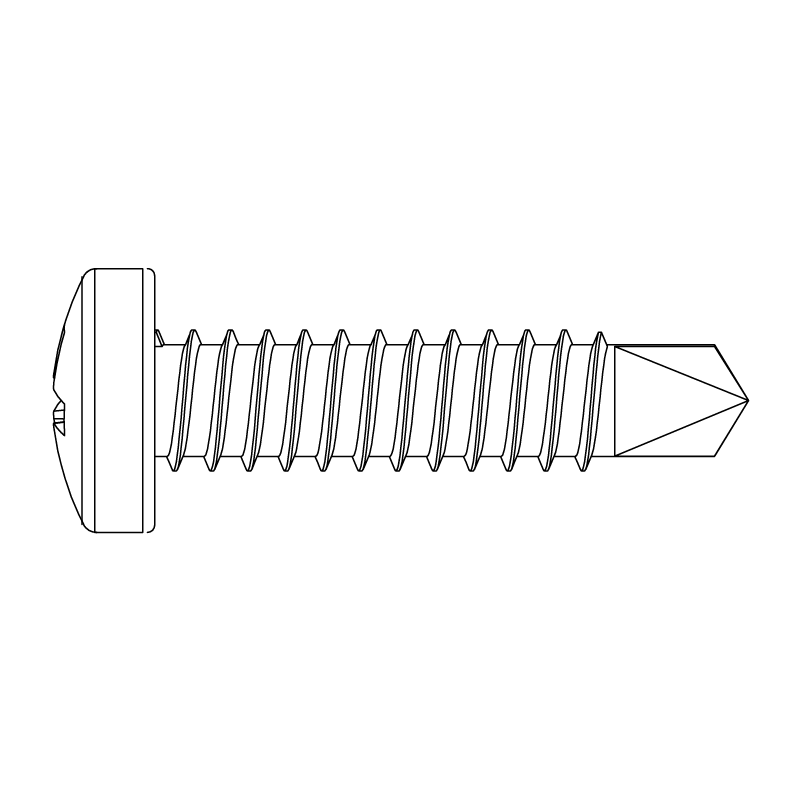

N. 0.75" Screw (24)

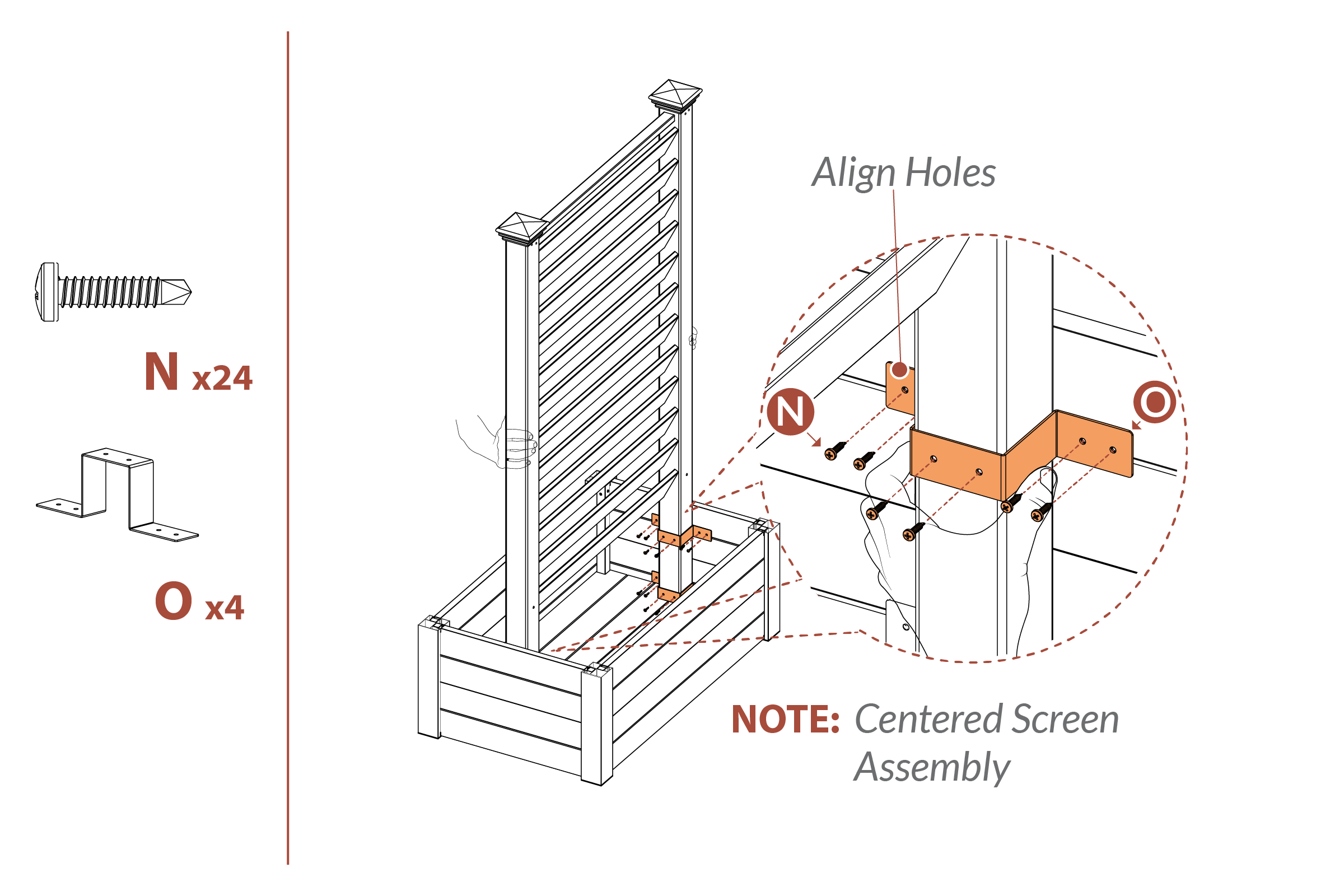

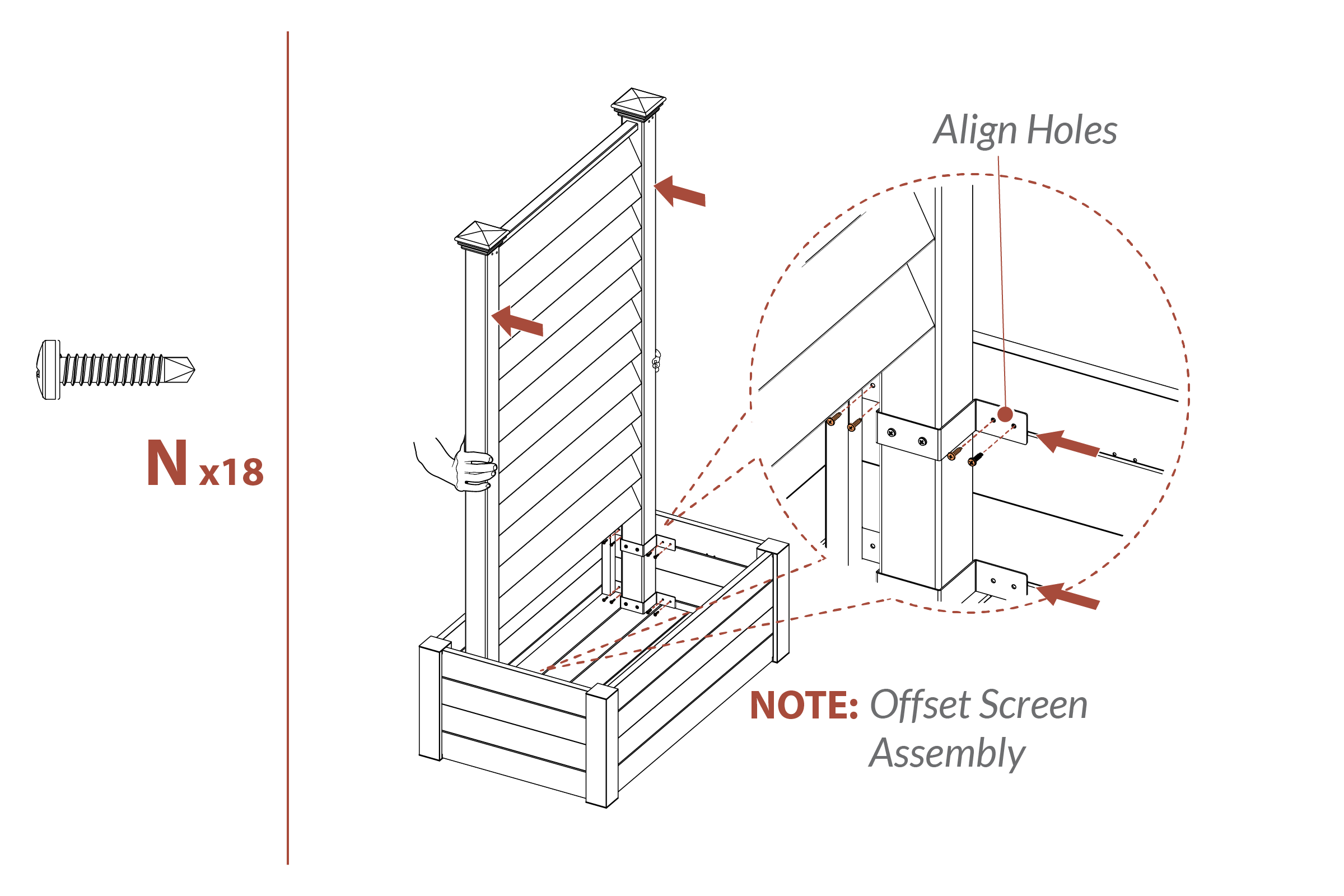

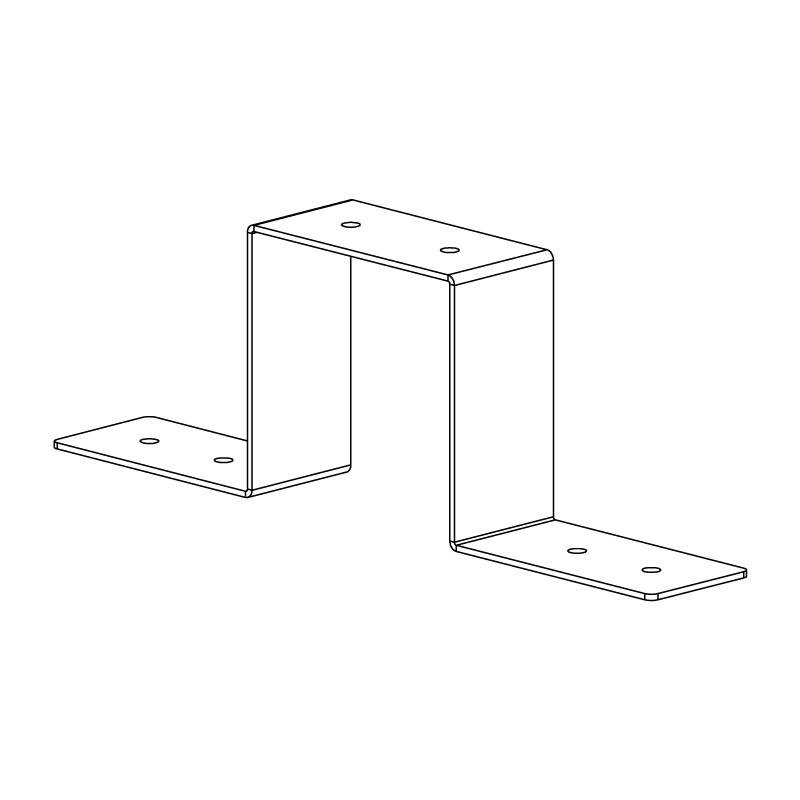

O. Post Brackets (4)

3" x 3" x 9 1/4"
