General Information

Important Safety Notes:

• Check the inside of the larger pieces in your box for other materials packed inside.
• When assembling components, place on a non-abrasive surface (i.e. shipping box) to avoid scratching.
• We recommend an area approximately 5’ x 8’ for unobstructed assembling.
• You should not need to use excessive force when assembling components.

Returns:
If you wish to return your product, please contact us first — we can often help resolve the issue right away. If a return is still necessary, it must be initiated with the retailer where the product was purchased.

Need Help or Replacement Parts?

Although great care has been taken to ensure proper packaging and handling of this product, occasional issues can occur.

If you need replacement parts, assembly assistance, or have questions about the product, our customer service team is happy to help.

• Website: https://parts.nychbrands.com
• Email: support@encloscreens.com
• Phone: 704-892-5222 or 877-234-6196

Customer service agents are available 9am–5pm EST, Monday–Friday.

For Quick Assistance:

• Have reference item number EC18037
• Provide the specific part name
• Include the batch lot number

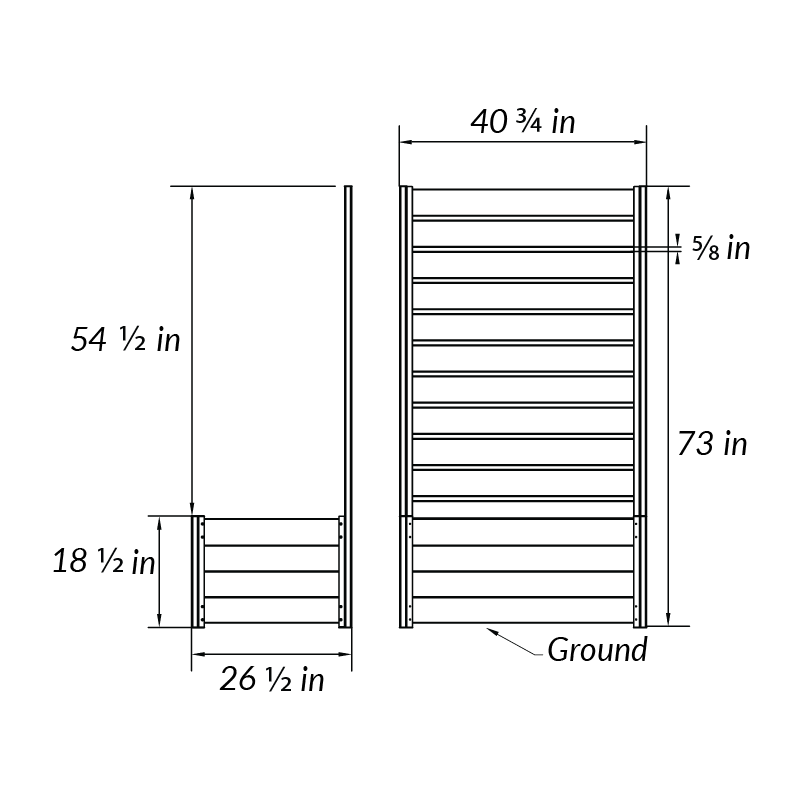

Detailed Dimensions & Specifications

Product Specifications:

• Overall height: 73 in
• Overall width: 40 3/4 in
• Planter depth: 13 1/2 in
• Planter volume: 7.4 cubic ft

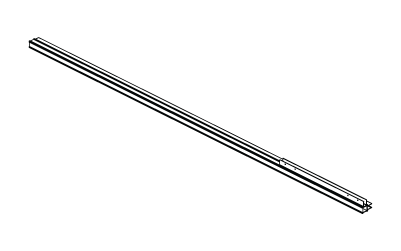

A — Left Post (1)

2 ⅛" × 2 ⅛" × 72 ⁵⁄₈"

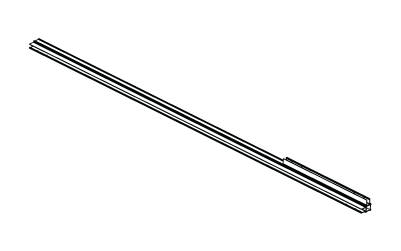

B — Right Post (1)

2 ⅛" × 2 ⅛" × 72 ⁵⁄₈"

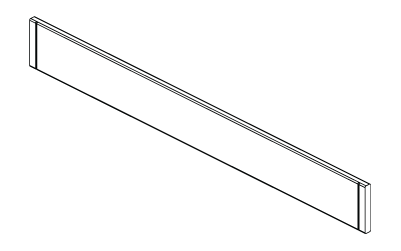

C — Board (10)

⁵⁄₈" x 4 ½" x 38 ¼"

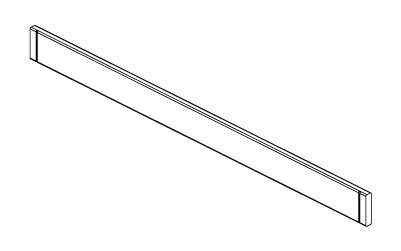

D — Bottom Board (1)

⁵⁄₈" x 3" x 38 ¼"

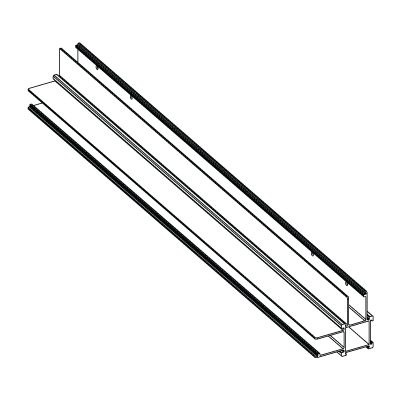

E — Corner Post (2)

2 ⅛" x 2 ⅛" x 18 ¼"

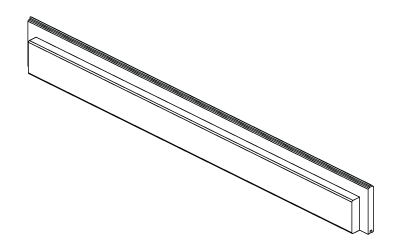

F — Planter Floor Support Board (2)

1 ¾" x 4 ½" x 38 ¼"

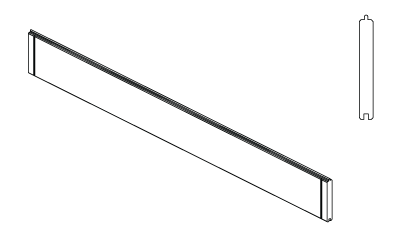

G — Planter Long Boards (4)

⅝" x 4 ½" x 38 ¼"

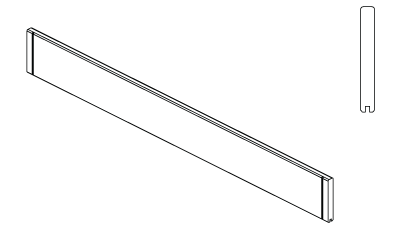

H — Planter Long Top Boards (2)

⅝" x 4 ½" x 38 ¼"

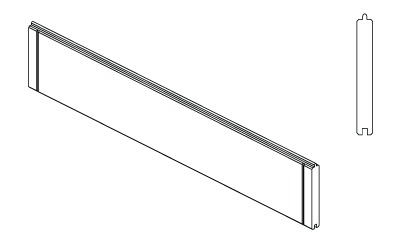

I — Planter Short Boards (6)

⅝" x 4 ½" x 24"

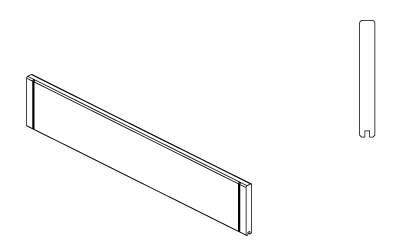

J — Planter Short Top Boards (2)

⅝" x 4 ½" x 24"

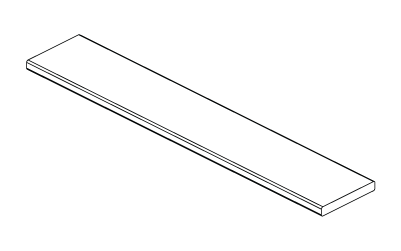

K — Floor Boards (6)

⅝" x 4 ½" x 24 ½"

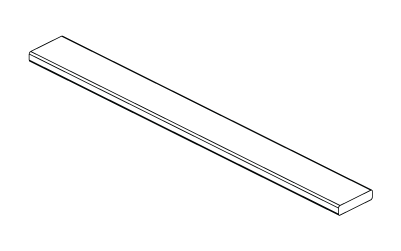

L — Middle Floor Board (1)

⅝" x 2 ¾" x 24 ½"

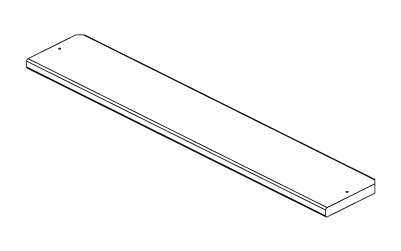

M — End Floor Boards (2)

⅝" x 2 ¾" x 24 ⅝"

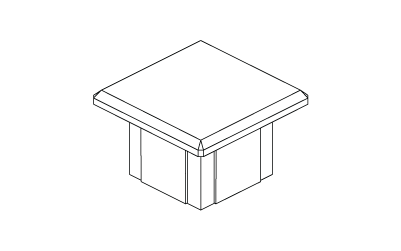

N — Screen Post Cap (2)

1 ¼" x 1 ¼" x ¾"

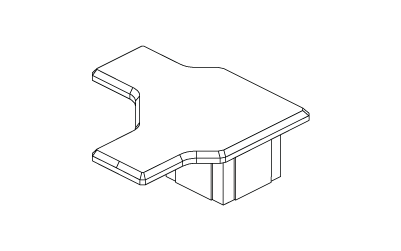

O — Planter Post Cap (6)

2 ¼" x 2 ¼" x ¾"

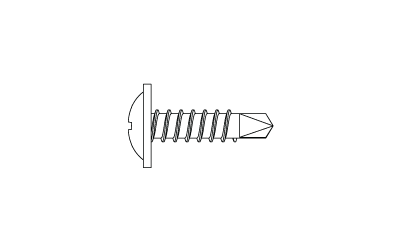

P — ⅝" Self Drilling Screw (32)

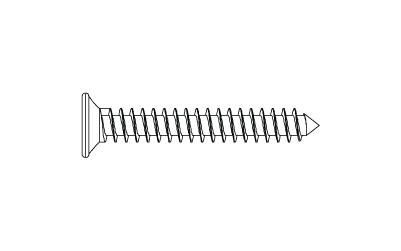

Q — 1 ½" Wood Screw (4)

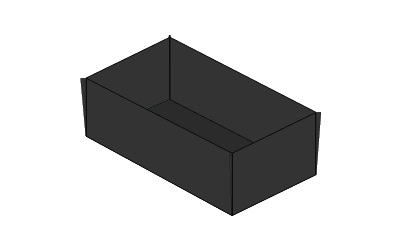

R — Planter Liner (1)

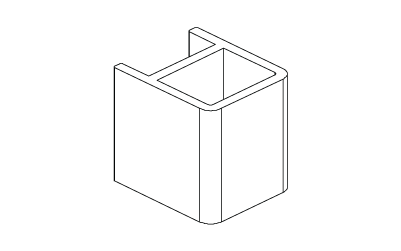

S — Spacers (20)

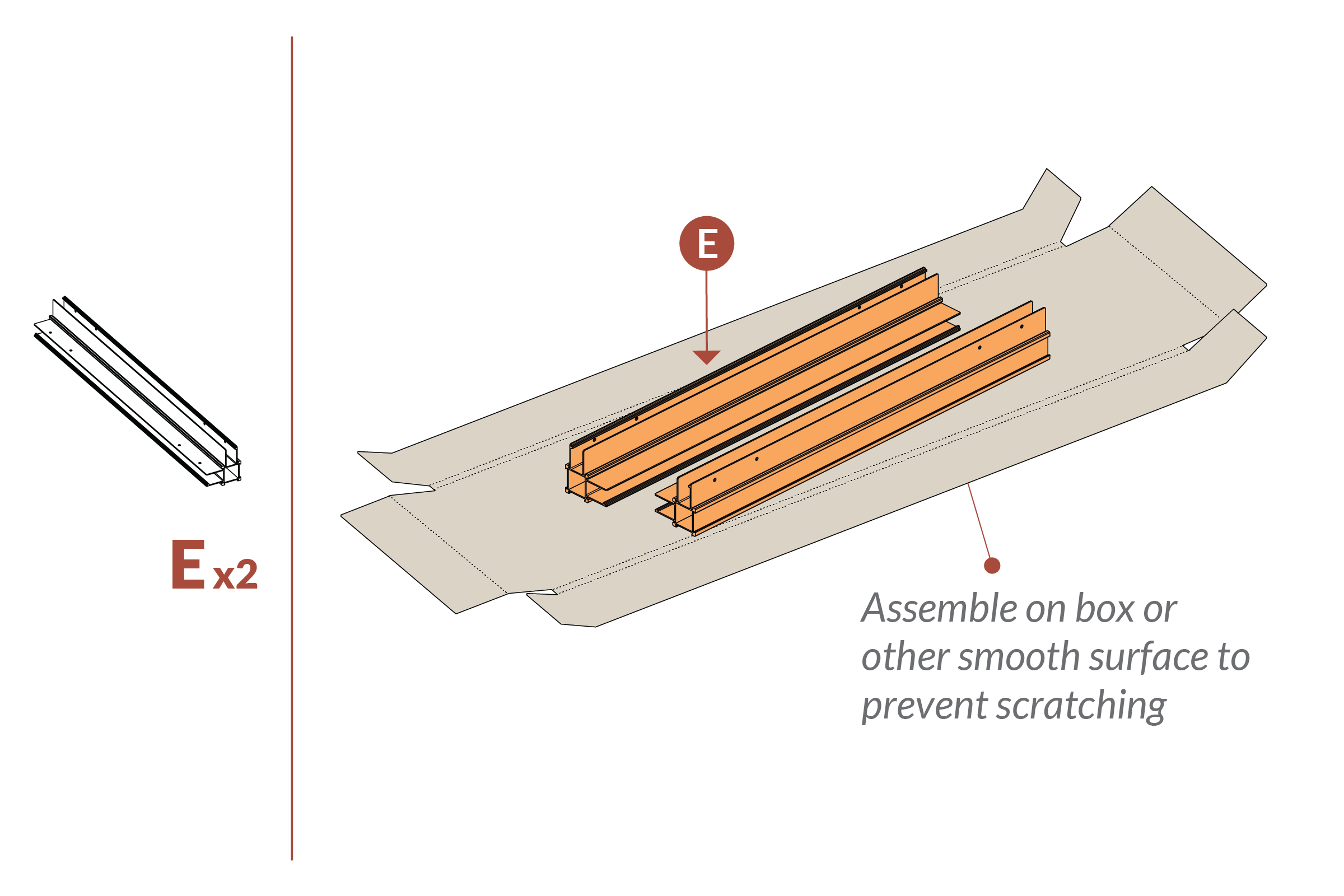

• Assemble on box or other smooth surface to prevent scratching.

• Insert planter floor support board (F) and spacers (S) into corner posts (E).
• Ensure spacers (S) are flush with the bottom of post.

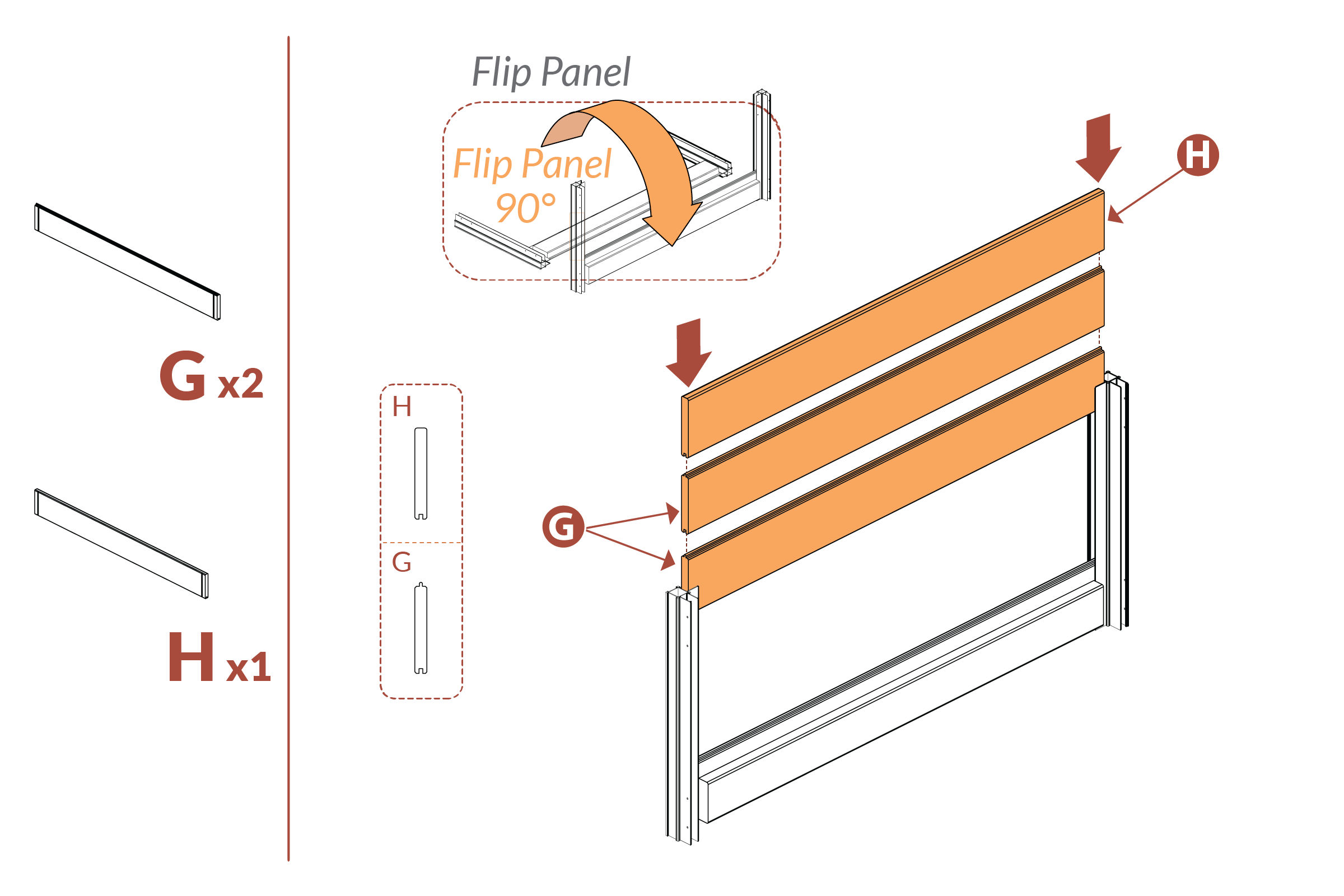

• Slide planter long boards (G) and planter long top board (H) between corner posts (E).
• Flip panel 90 degrees.

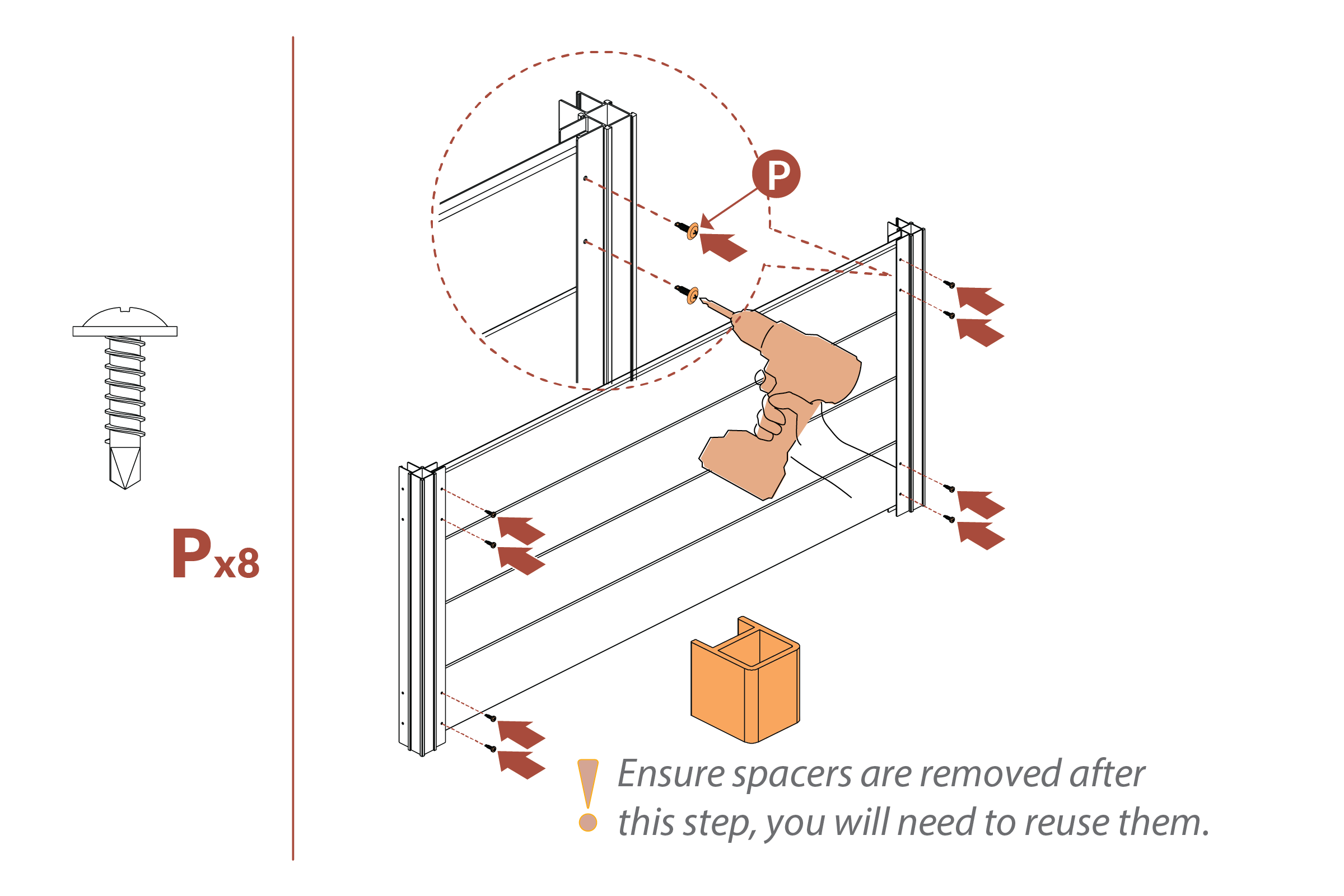

• Insert 5/8" self drilling screws (P) into corner posts (E).
• Ensure spacers are removed after this step, you will need to reuse them.

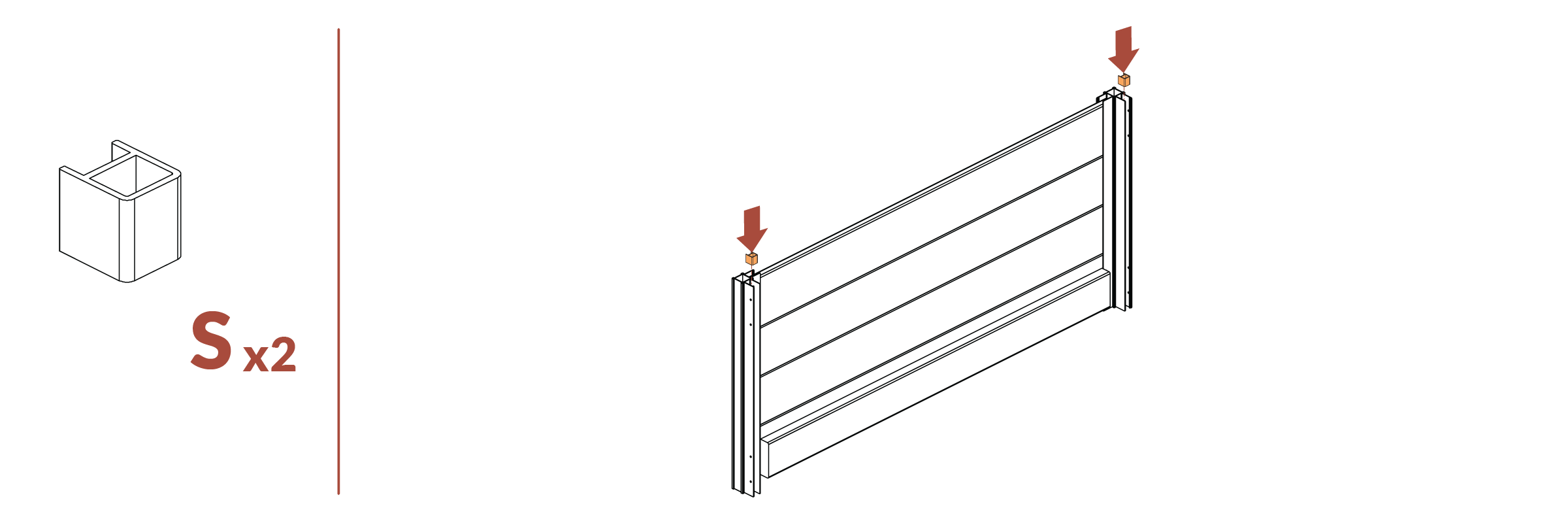

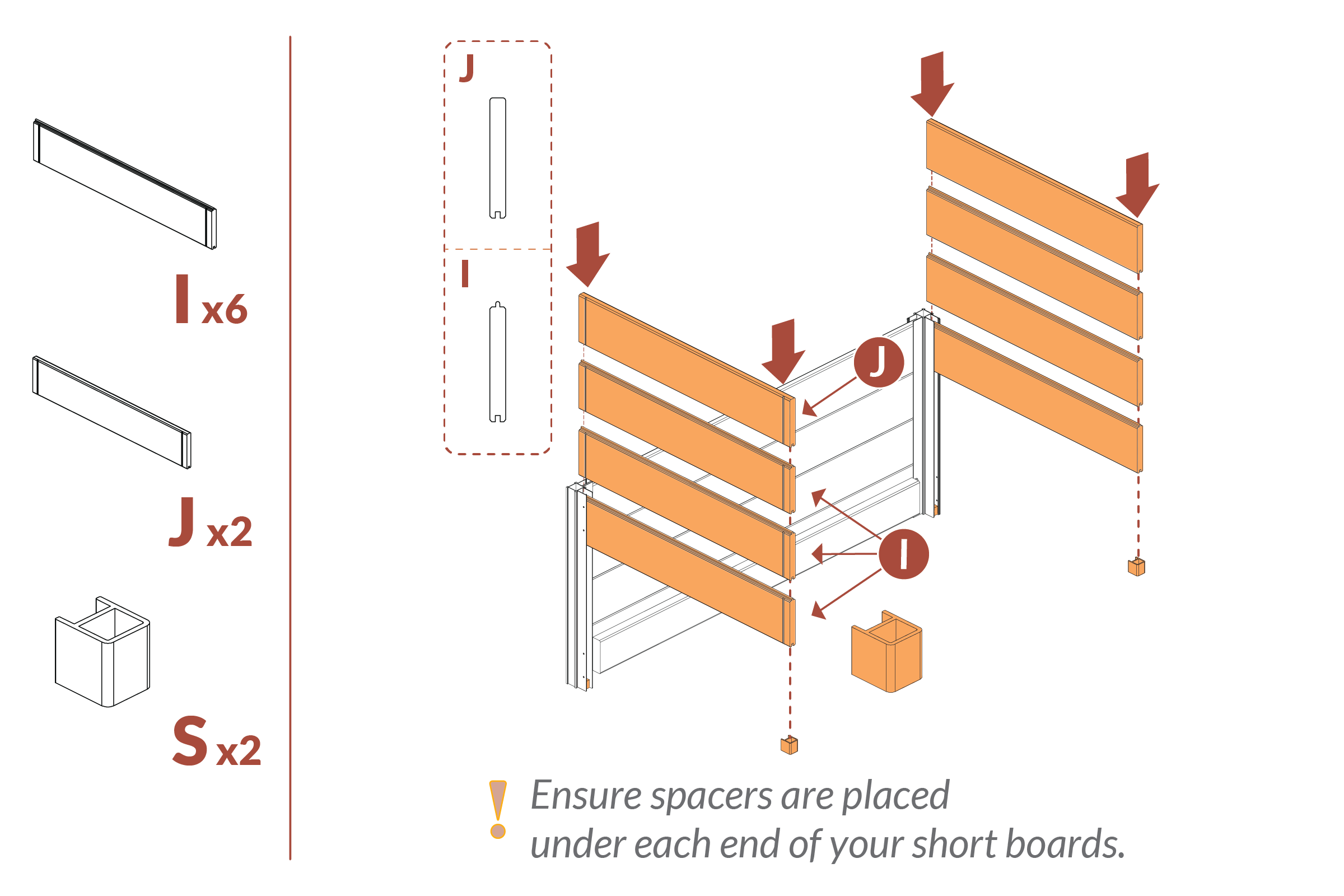

• Insert spacers (S) through tops of corner posts (E) and slide them down toward the bottom.

• Install planter short boards (I) then planter short top board (J) into corner posts (E).
• Ensure spacers are placed under each end of your short boards.

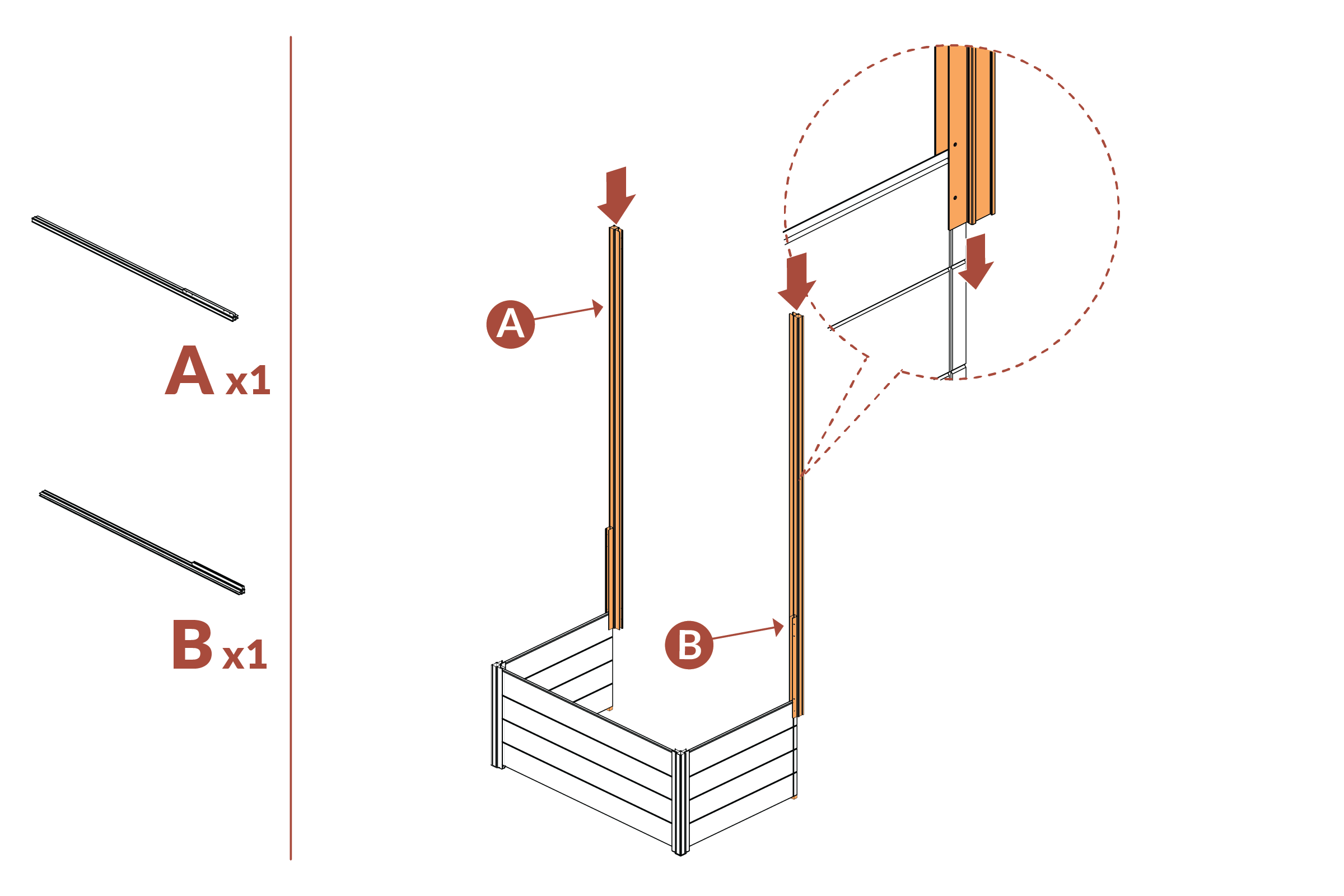

• Insert left post (A) and right post (B) through the tops of the planter short boards.

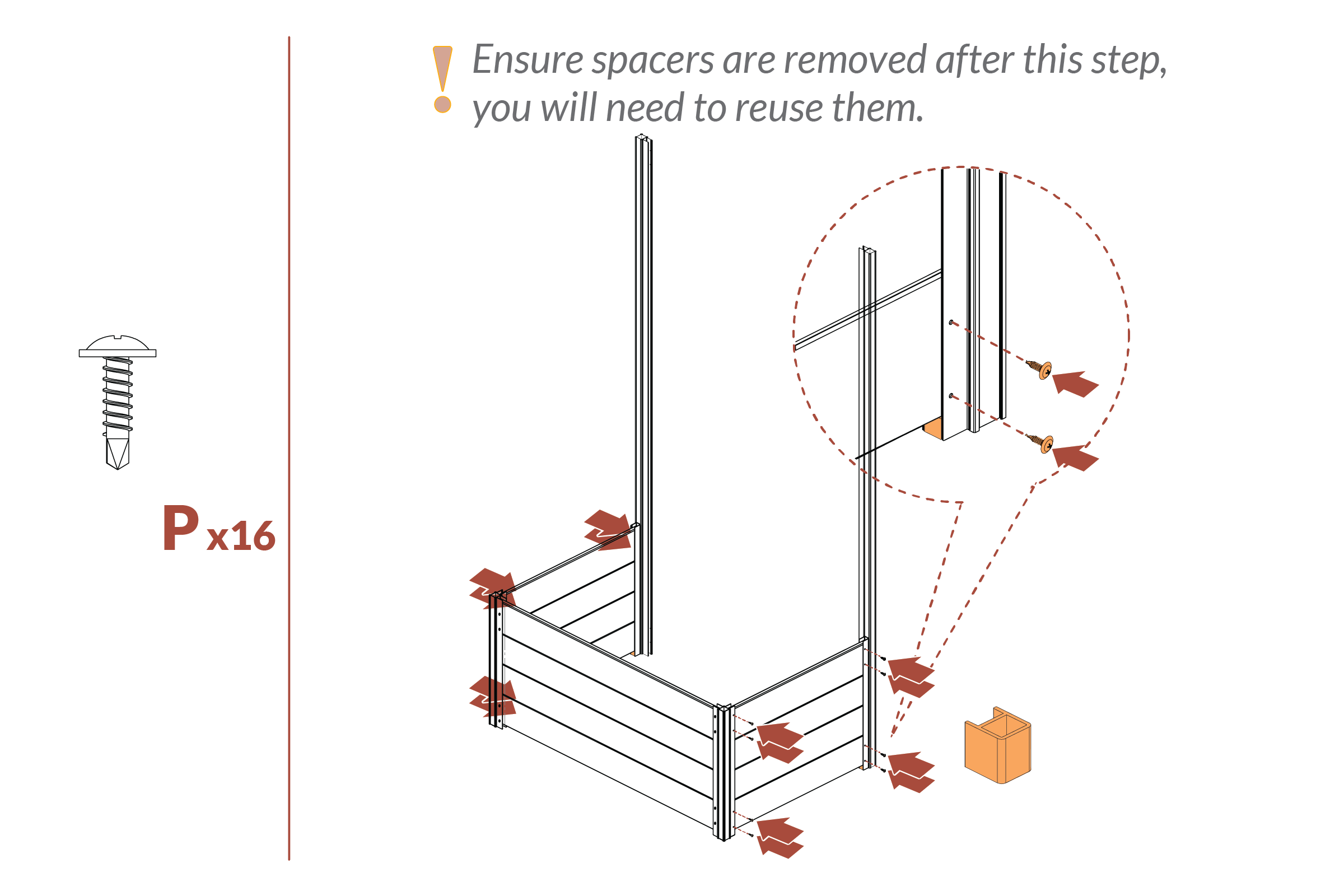

• Insert 5/8" self drilling screws (P) into posts.
• Ensure spacers are removed after this step, you will need to reuse them.

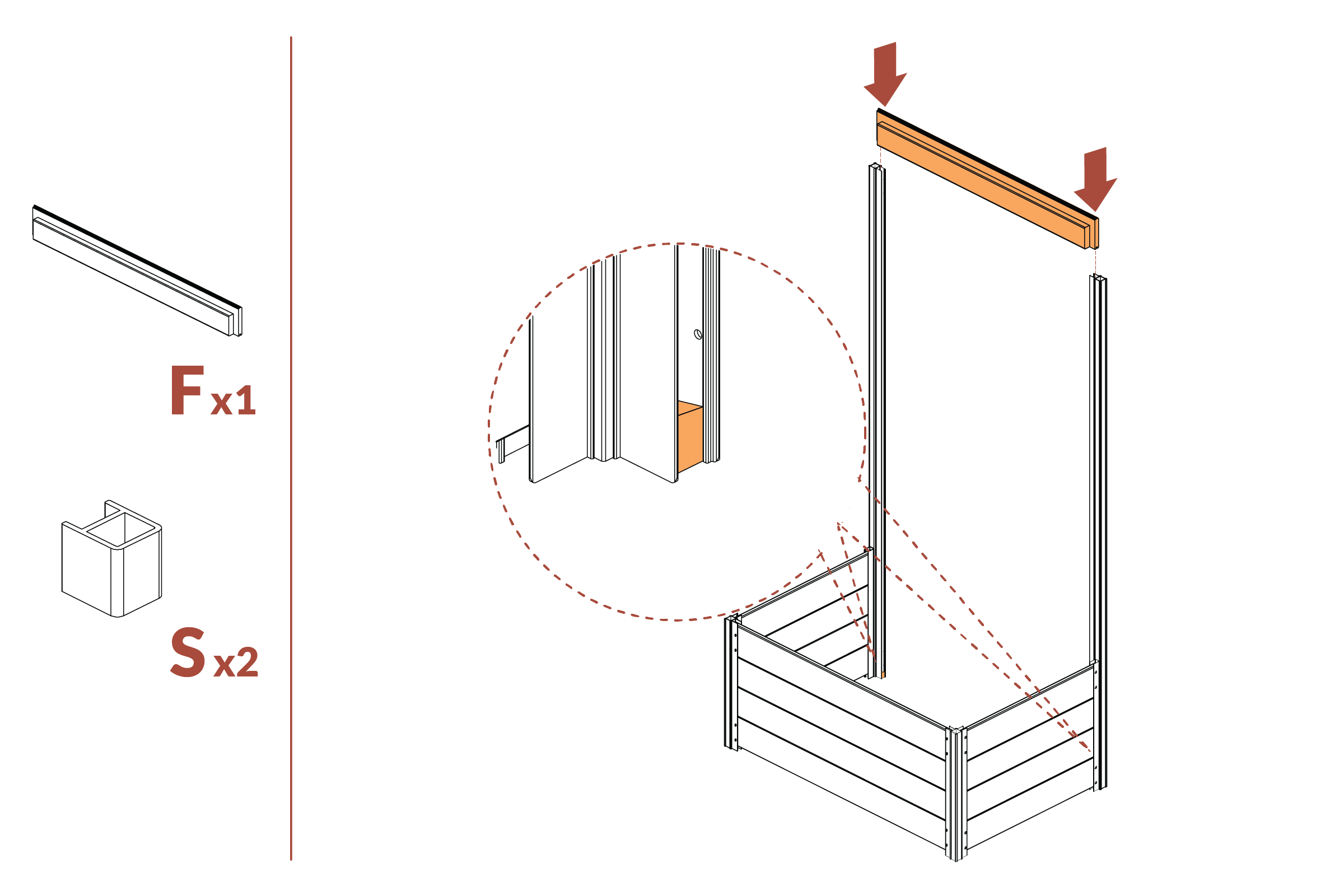

• Install spacers (S) on the bottoms of the posts.
• Slide planter floor support board (F) down the left post (A) and right post (B).

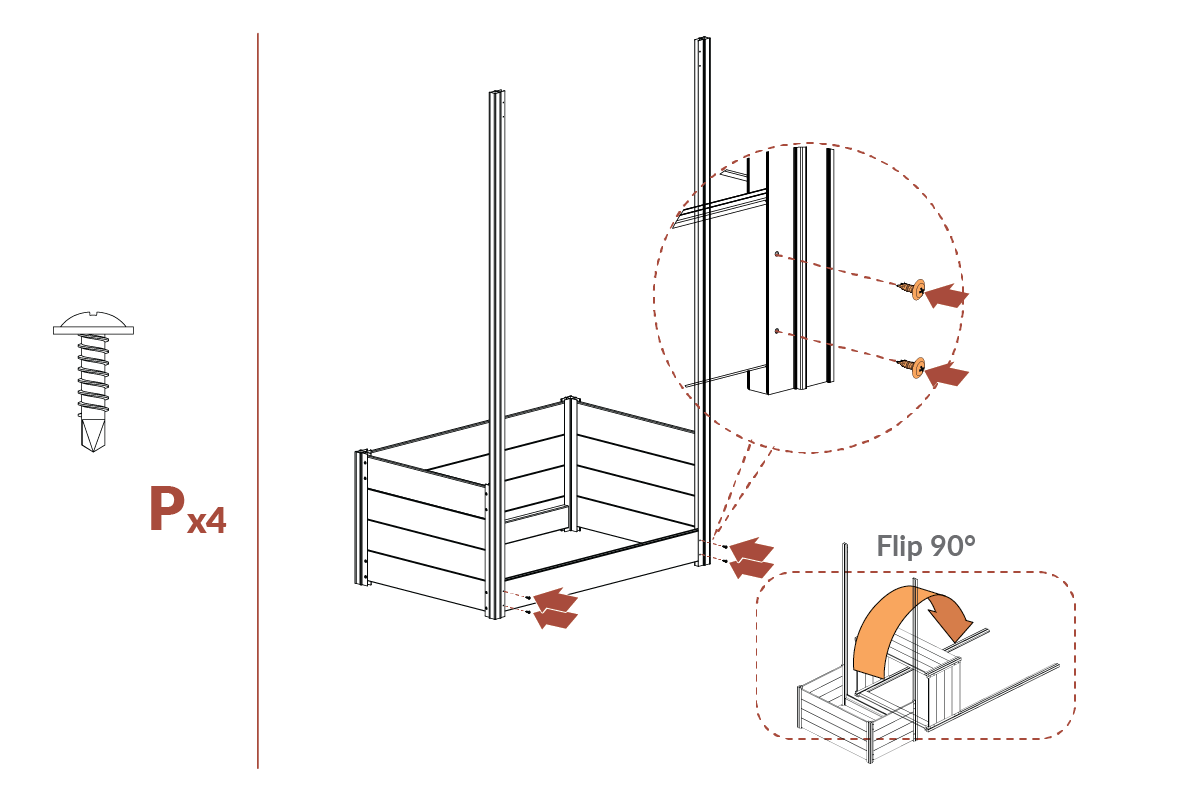

• Insert 5/8" self drilling screws (P) into posts and flip unit 90 degrees.

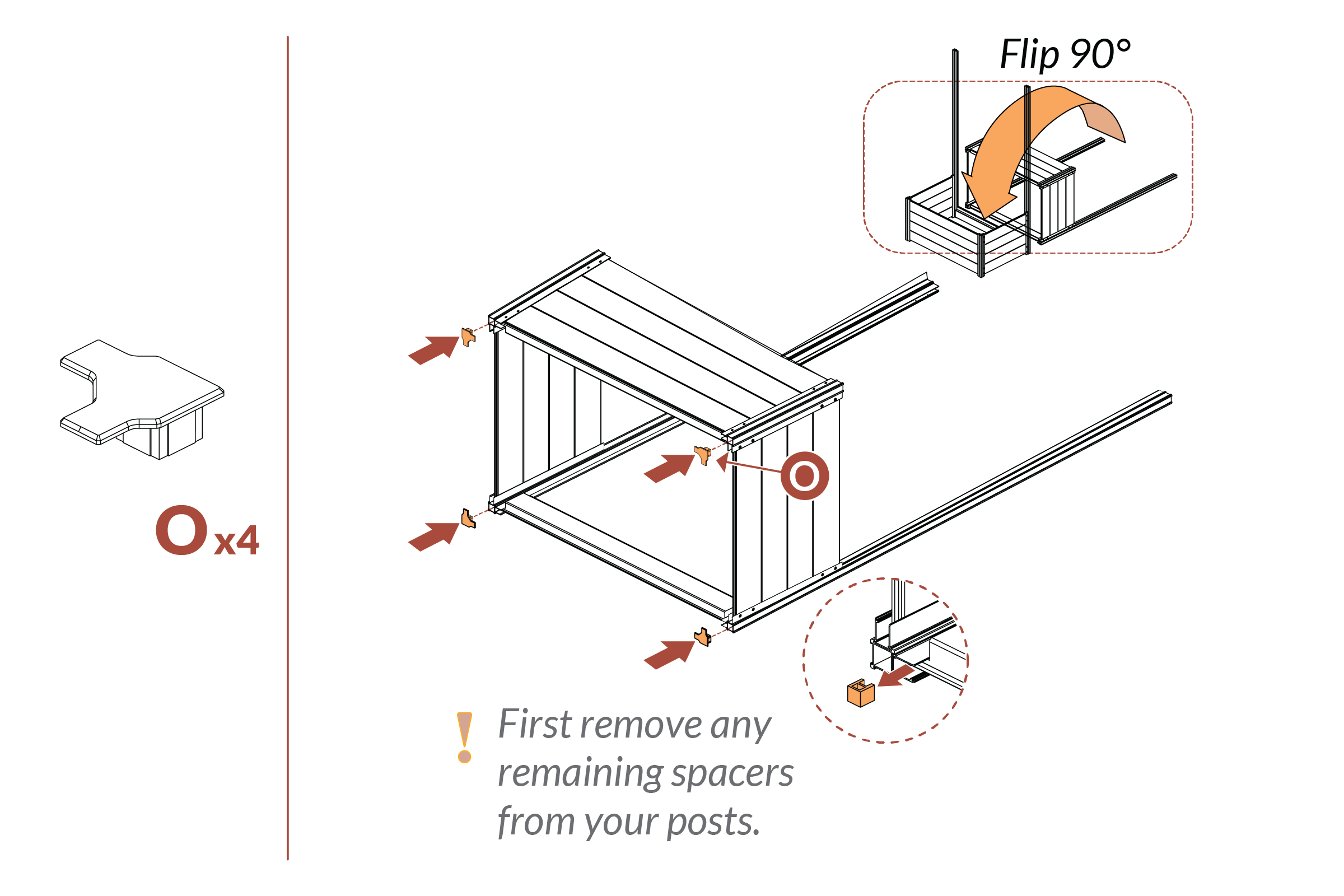

• Insert planter post caps (O) on he bottom of the unit and flip 90 degrees.

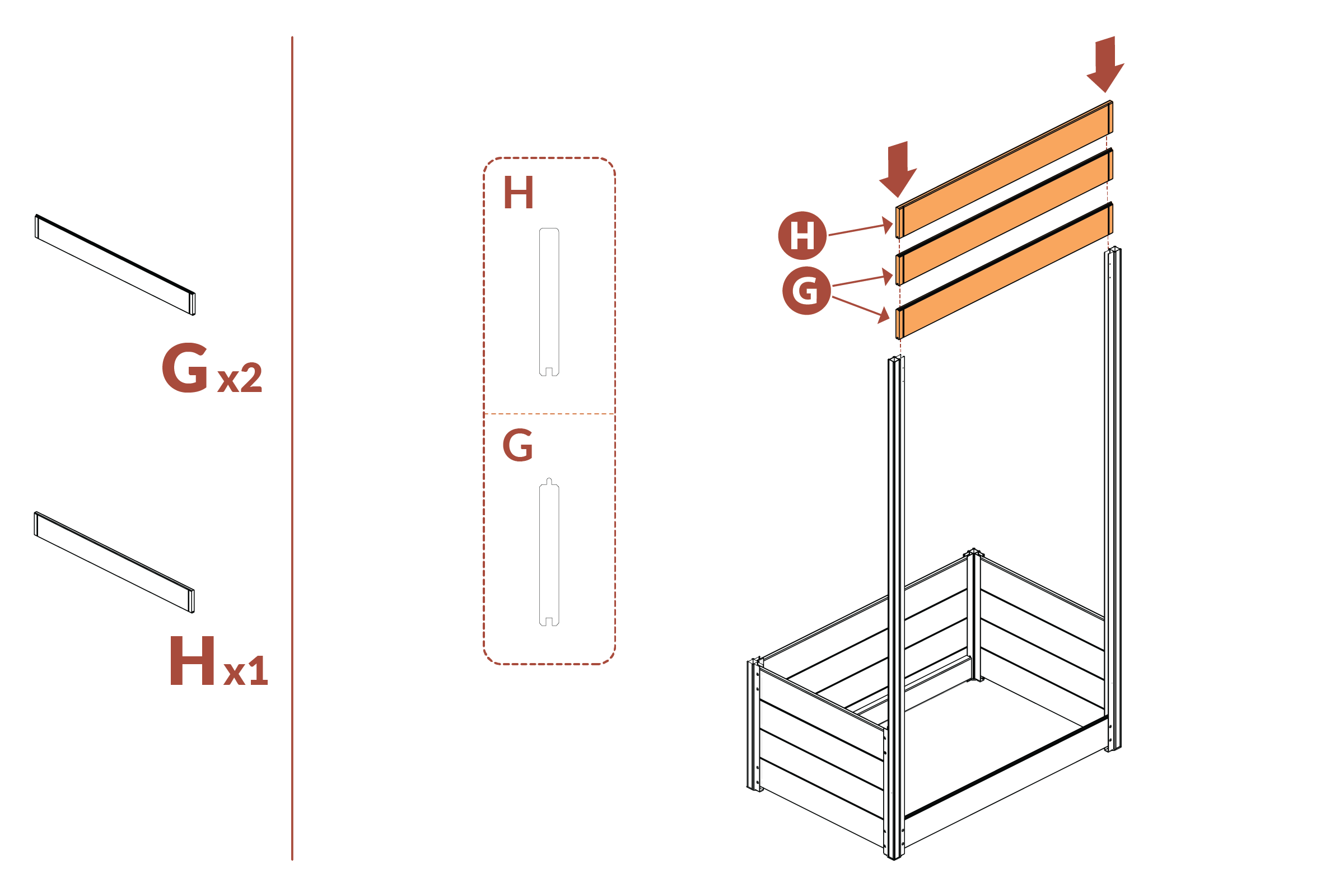

• Slide planter long boards (G) down the posts.
• Planter long top board (H) will be inserted last.

• Slide bottom board (D) and spacers (S) through top of the posts.

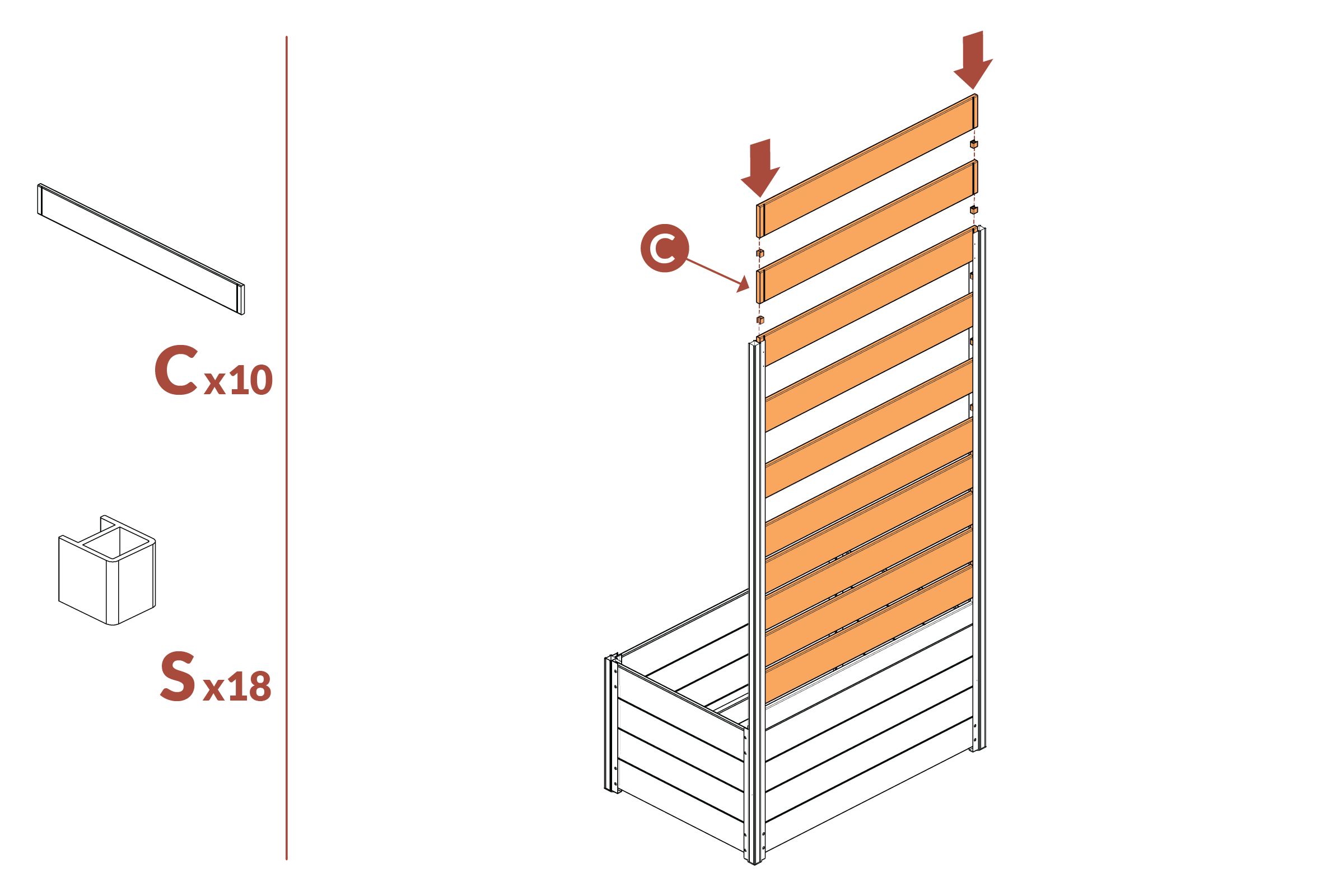

• Slide boards (C) with spacers (S) in between each board over the posts.

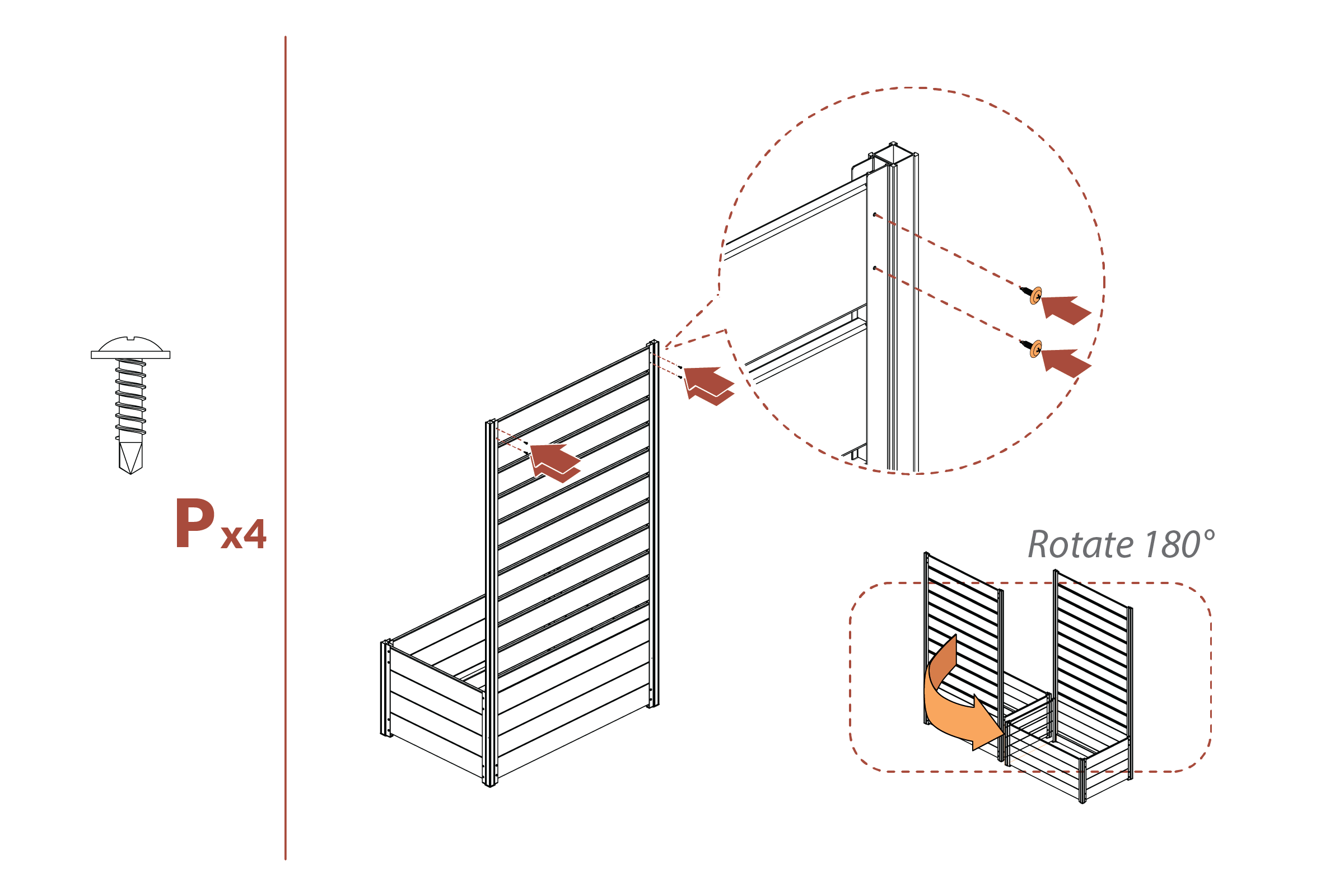

• Insert 5/8" self drilling screws (P) into posts and rotate unit 180 degrees.

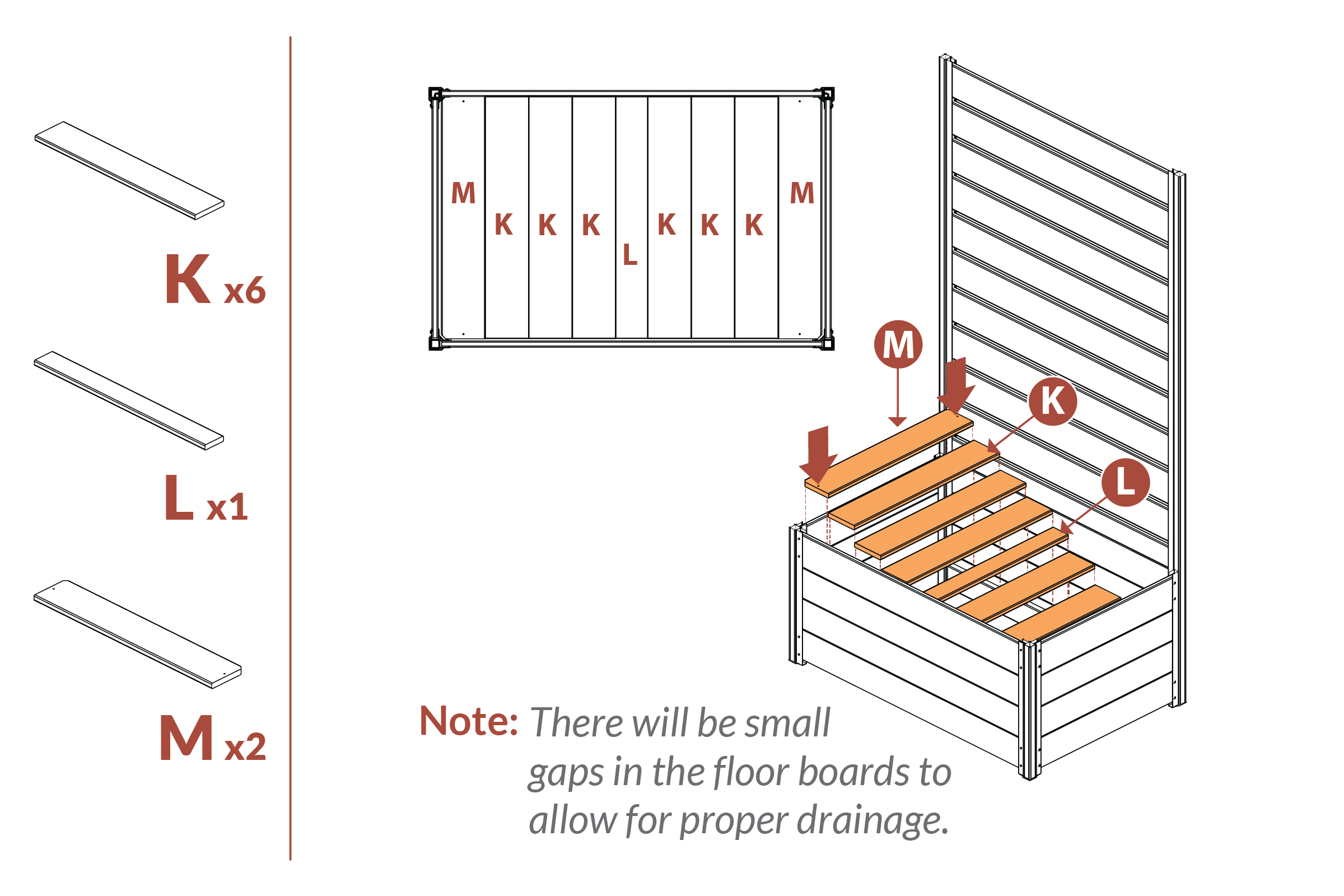

• Install the floor boards (K), middle floor board (L), and end floor boards (M) into the bottom of the planter box.
• There will be small gaps in the floor boards to allow proper drainage.

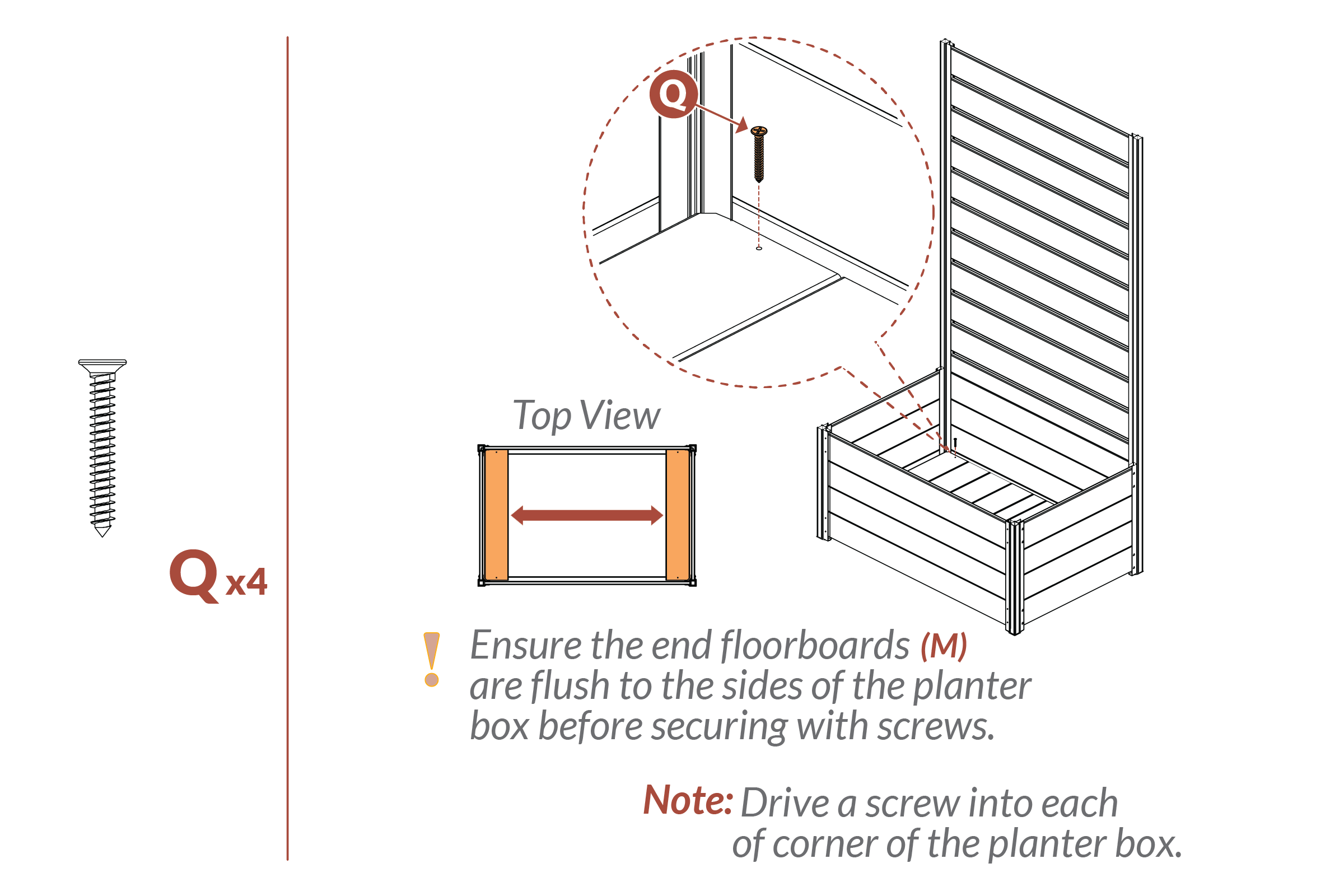

• Insert 1 1/2" wood screws (Q) into the corners of the end floor boards (M).
• Ensure that the end floor boards (M) are flush to the sides of the planter box before securing with screws.

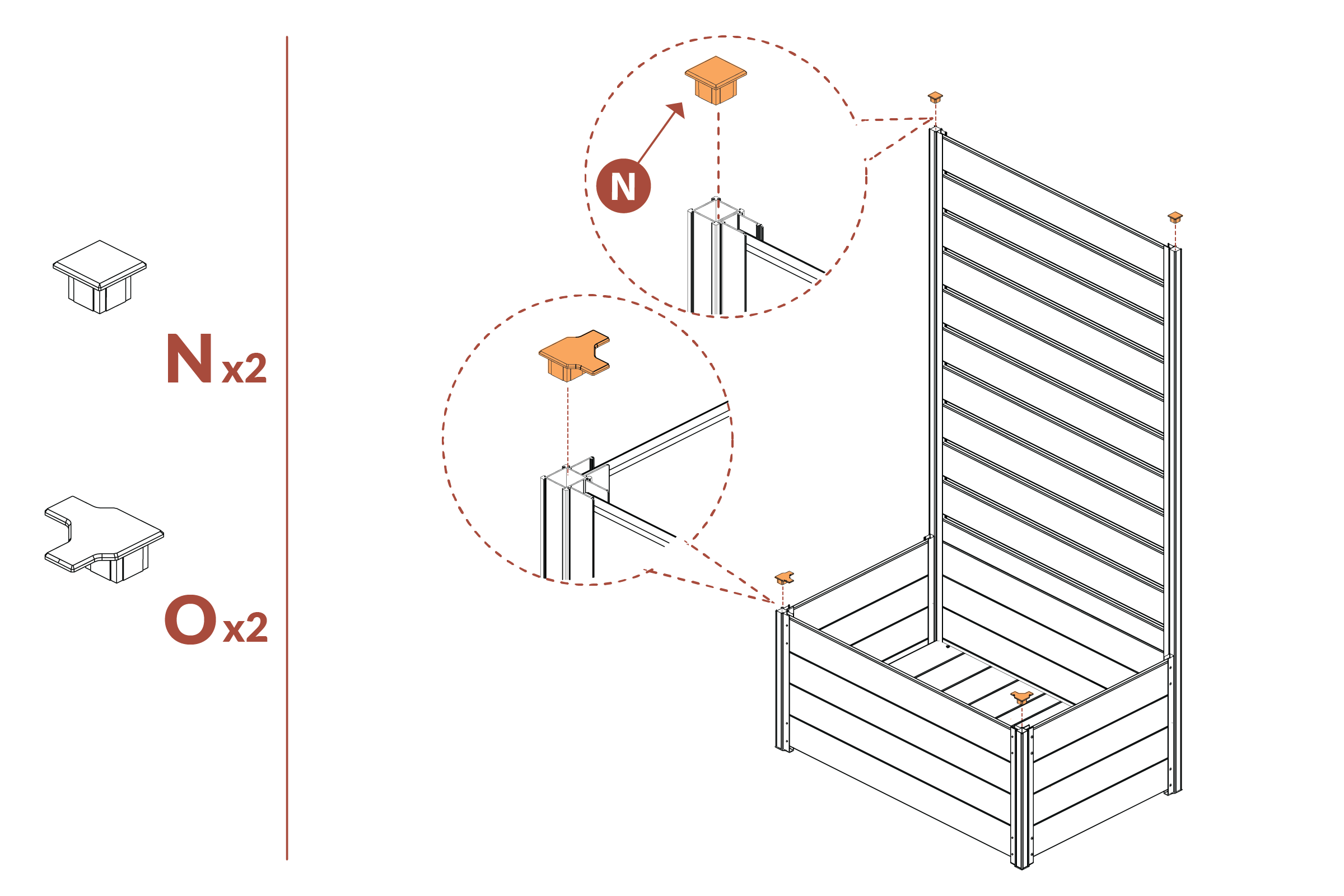

• Insert planter post caps (O) and screen post caps (N) on posts.

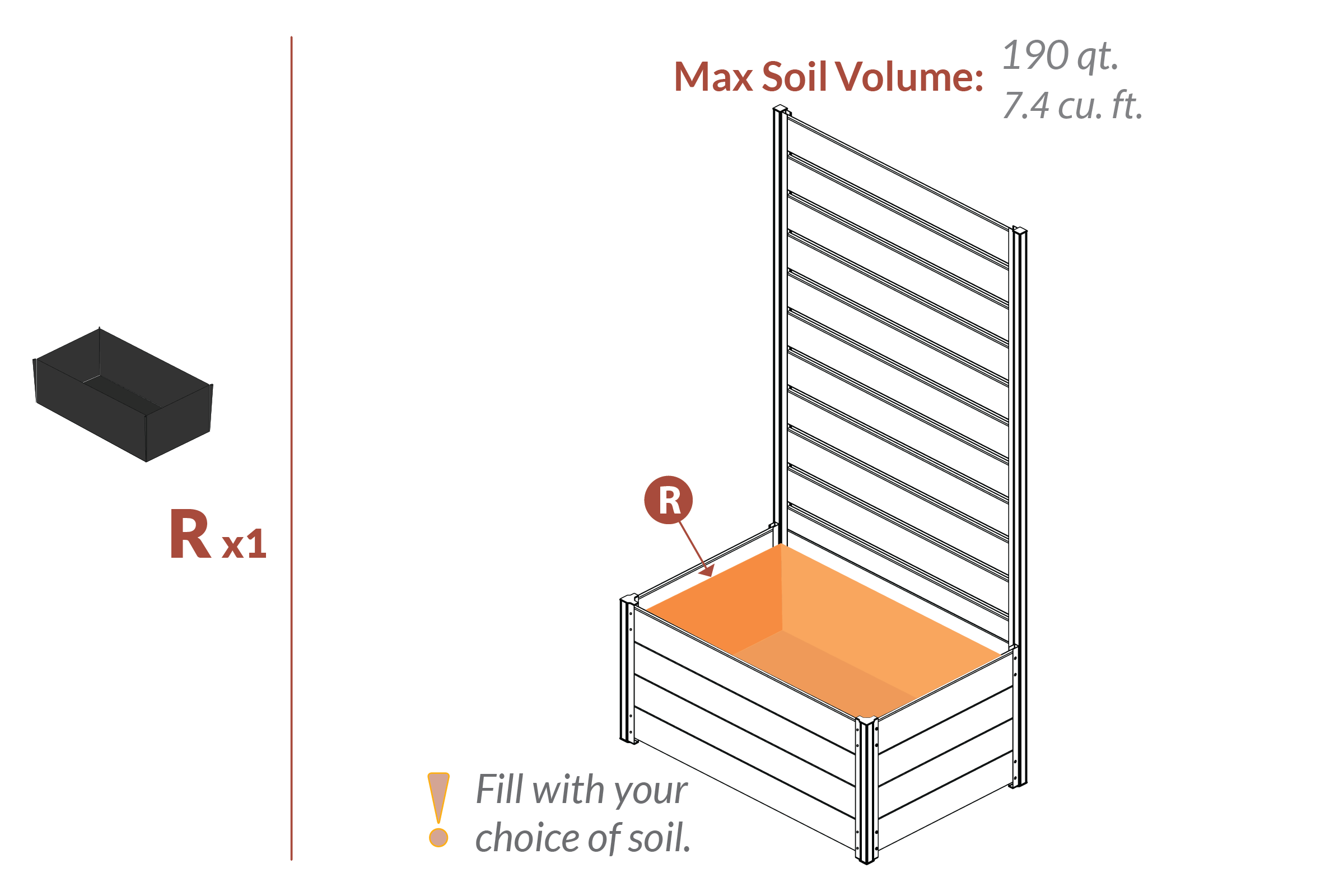

• Place planter liner (R) inside of planter box.
